HikVision AX Pro - Wireless transmitter

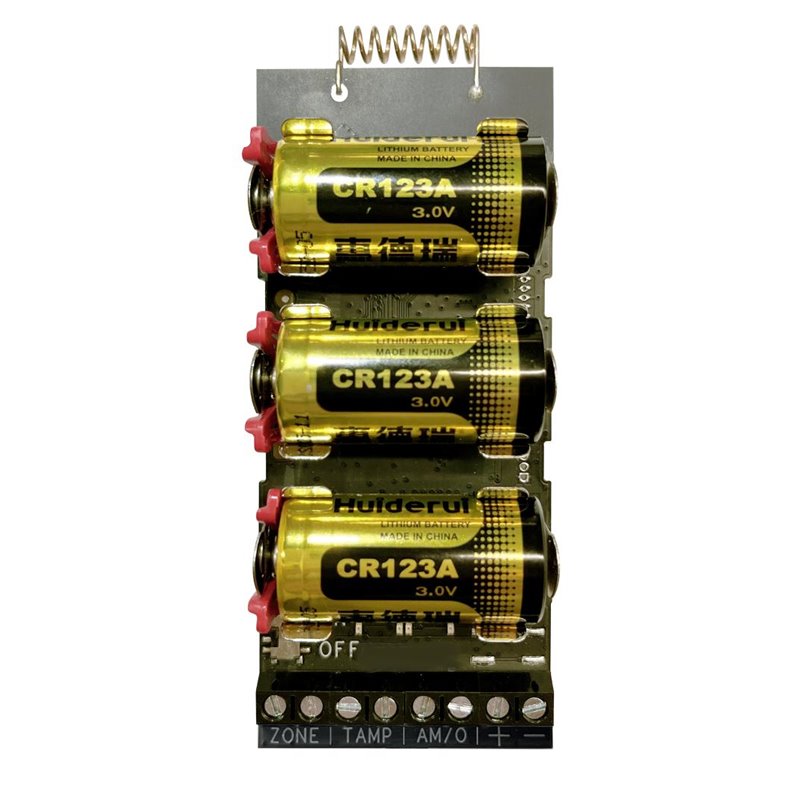

The DS-PM1-I1-WE is a compact wireless transmitter for the Hikvision AX PRO wireless alarm system. It enables the simple integration of a wired sensor or detector into the wireless system. Thanks to its small format, the module can be installed directly into an existing detector. Thanks to bidirectional radio transmission, the module communicates reliably with the control panel. Ideal for expanding existing wiring systems without having to do without wired devices.

Product features

• Very compact design (102 × 41 × 20 mm) - ideal for built-in integration. Bidirectional
• radio transmission at 868 MHz with a range of up to approx. 1,700 m in free field.
• LED display for signal strength, alarm/tamper and error statuses. 1
• Alarm input, 1 tamper input and a PGM output.
• Integrated 3.3 V output voltage for powering an external detector.
• Acceleration sensor for detecting tampering or removal of the device.
• Battery operation with 3 × CR123 (3 V) and very low quiescent current - standby time up to 5 years.

Technical data

• Radio frequency: 868 MHz, bidirectional communication.
• Radio range: up to approx. 1,700 m (free field).
• Hardware: 1 × alarm input, 1 × tamper input, 1 × PGM output, 3.3 V output up to ~10 mA.
• Power supply: 3 × CR123 batteries (3 V DC).
• Quiescent current approx. 40 µA, maximum current approx. 48 mA.
• Operating temperature: -10 °C to +55 °C, operating humidity: 10 % to 90 %.
• Dimensions: 102 × 41 × 20 mm, weight: approx. 35 g without battery, approx. 90 g with battery.
• Installation type: Intended for installation in wired detector.

Scope of delivery

• 1 × DS-PM1-I1-WE radio transmitter 3
• × CR123 batteries
• Assembly and installation instructions
• Screws/adhesive material for installation (depending on packaging)
