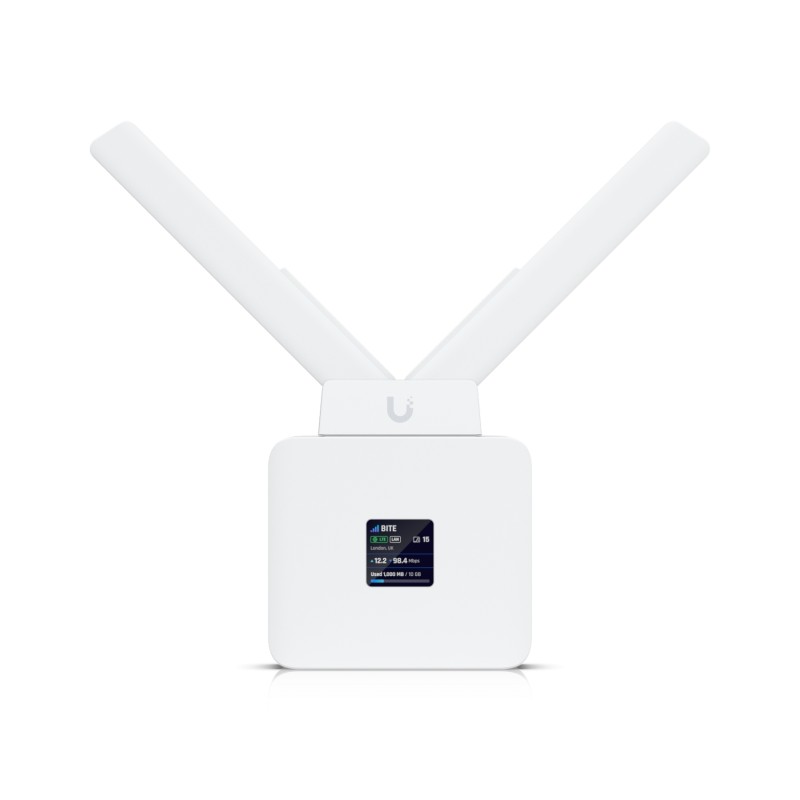

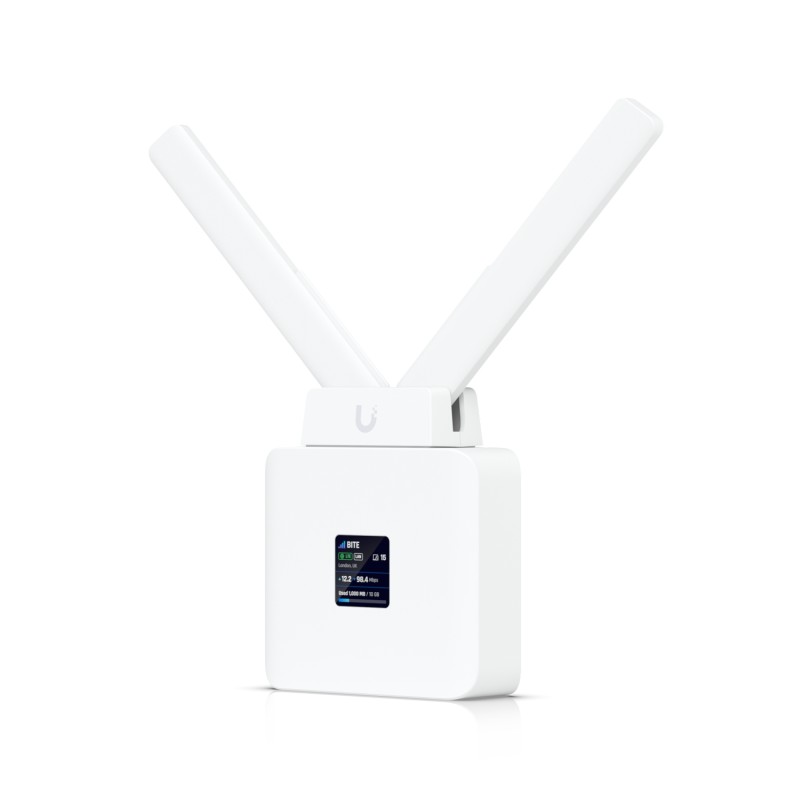

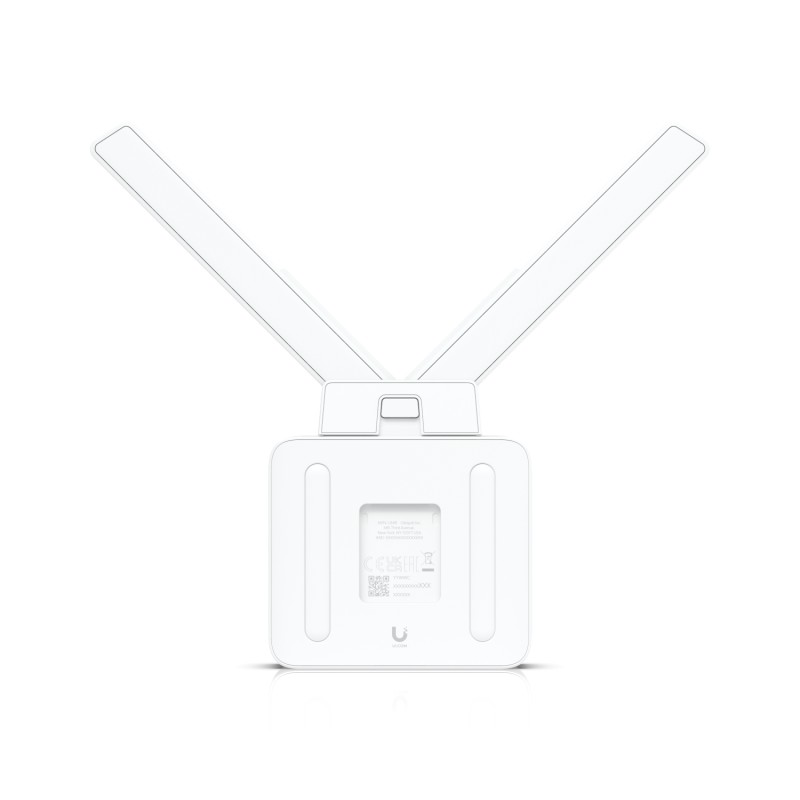

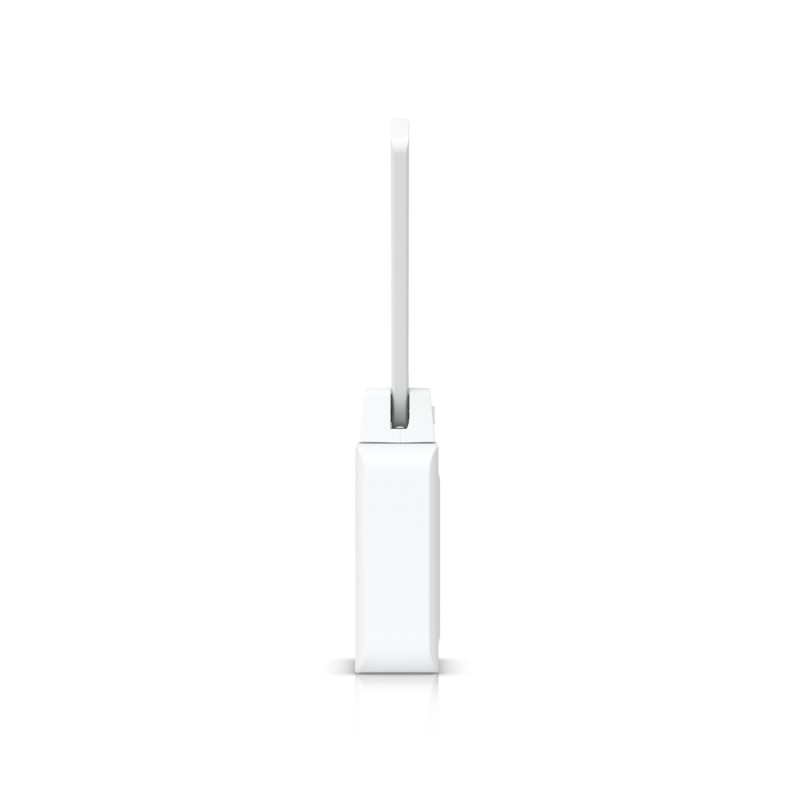

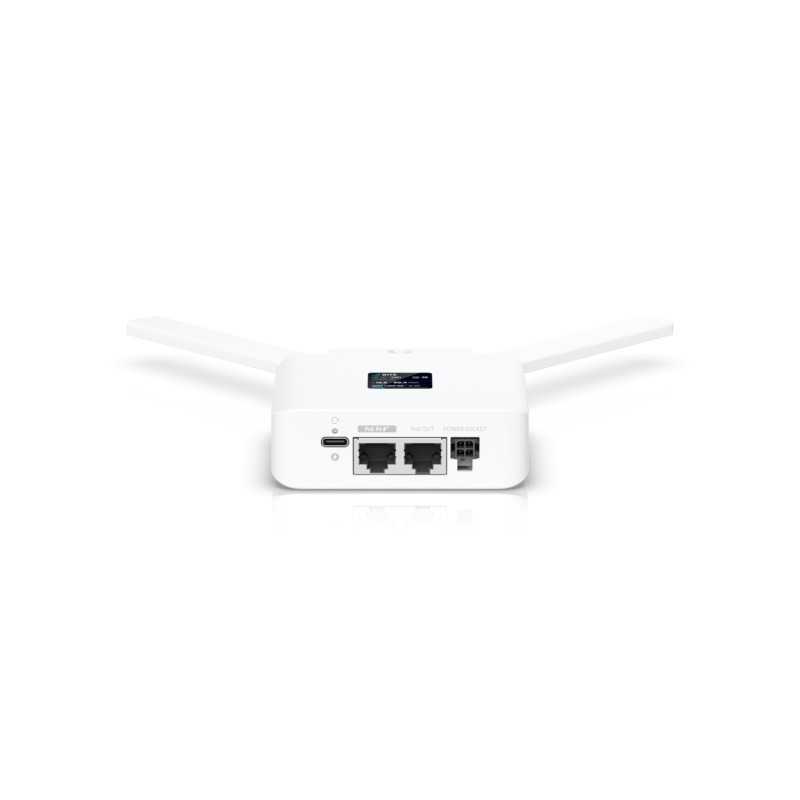

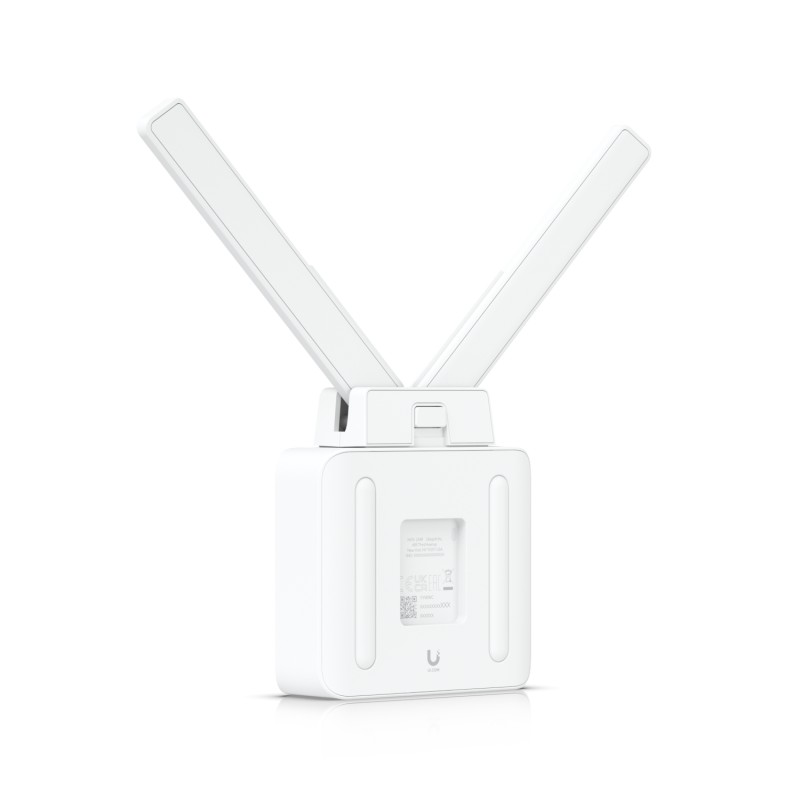

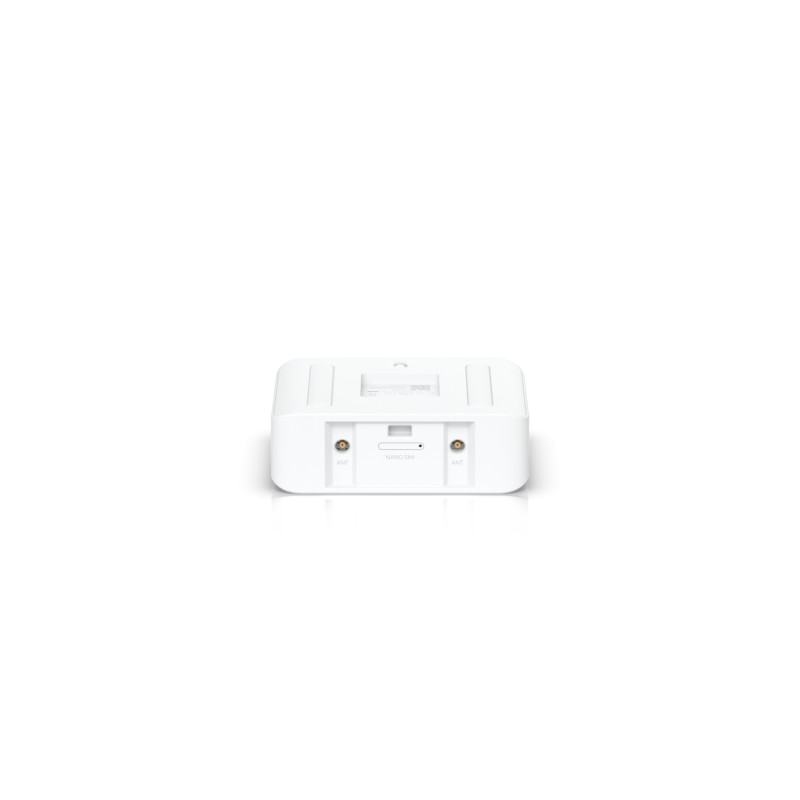

Ubiquiti Unifi Mobile Router / 4G / WiFi / GPS / PoE / UMR
Ubiquiti Unifi Mobile Router / 4G / WiFi / GPS / PoE / UMR
Mobile WiFi router of LTE category 4
VPN client routing
Automatic failover between LTE and wired WAN
(2) GbE ports with (1) PoE output*
Powered by PoE, USB Type-C or 4-pin DC power outlet
Integrated GPS
Optional Mobility Cloud subscription**
*PoE+ input required for PoE passthrough.
**Mobility Cloud provides secure remote access and full management through the UniFi Mobility Portal for €2/month or £2/month per mobile router. Mobility Cloud is not required when using your own nano SIM. Basic management, such as WiFi configuration, is always available with local access through the UniFi mobile app when connected to a mobile router's WiFi.
Technical specifications
| Mechanically | |
|---|---|
| Dimensions | 220.6 x 89.8 x 28.8mm (8.7 x 3.5 x 1.1") |
| Weight | Without mount: 257 g (9.1 oz) With mount: 303 g (10.7 oz) |
| Housing material | Polycarbonat |
| Mounting material | Wall mount: polycarbonate. DIN rail mount: steel |
| Hardware | |
| processor | 74 Kc MIPS processor at 775 MHz |
| Storage information | 128MB DDR2 |
| Management interface | Ethernet -WIRELESS INTERNET ACCESS |
| Network interface | (2) GbE RJ45 ports LTE Category 4 Radio WiFi4 |
| PoE interface | (1) PoE input (1) PoE output* (max. 10 W) *Requires a PoE+ switch. |
| SIM | Nano SIM |
| LTE bands | B1, B3, B7, B8, 20, B28 |
| 3G bands | B1, B8 |
| LTE throughput speed* | Download 150 Mbps / Upload 50 Mbps *Speed depends on network coverage and performance at device location. |
| WLAN standards | 802.11 b/g/n, Wi-Fi 2.4G, 20/40 MHz |
| GPS | Yes |
| Antennas | (1) External LTE antenna (main + aux) with TS9 connectors (1) Internal WiFi 2.4GHz antenna (1) Internal GPS antenna |
| Power supply | UniFi PoE Switch (48-54V DC, 0.625A) USB Type-C (5V DC, 3A) 4-pin* ATX DC connector (9 V DC, 1 A) *For information on the pin assignment of the power connector, see the installation manual. |
| Max. energy consumption | 9W |
| LCM display | 1.3-inch screen |
| button | Factory settings reset |
| Assembly | DIN rail/wall (included) |
| operating temperatur | -20 to 45 °C (-4 to 113 °F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | CE, UKCA, GCF |
| Supported Wi-Fi data rates | |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (Wi-Fi 4) | 6.5 Mbit/s to 150 Mbit/s (MCS0 – MCS7, HT 20/40) |
