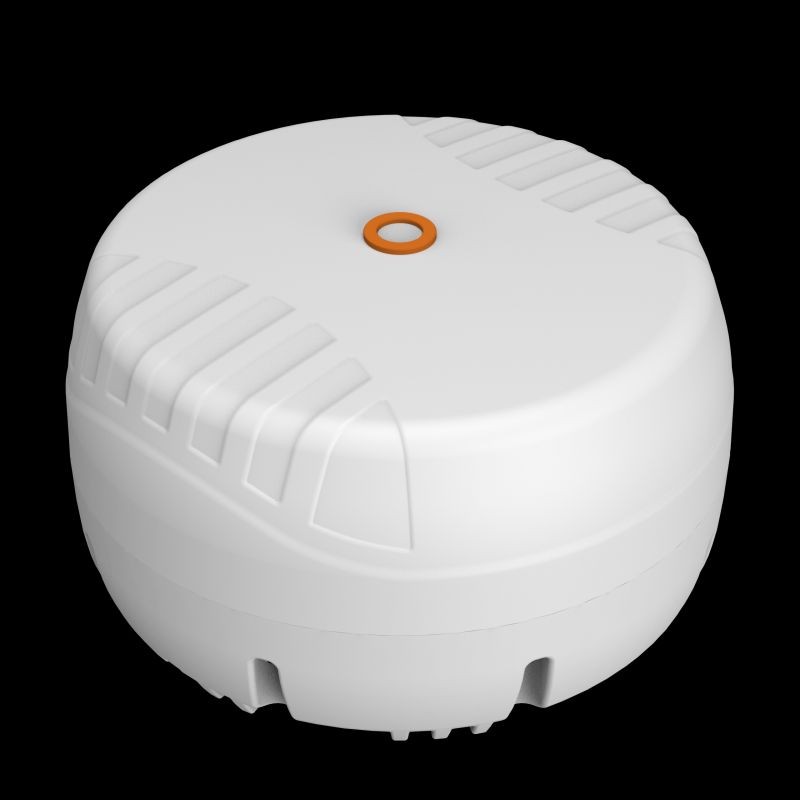

Poynting - Antennas - 5G/LTE - Marine/Coastal - CPE - A-SWIRL-0008-V1-02 - 8x8 MIMO LTE/5G - WiFi 7, GPS

The SWIRL-8 has 8 cross-polarized cellular antennas covering frequencies from 617 to 6000 MHz with a peak gain of 6 dBi, 4 dual-band WLAN antennas (2.4 GHz and 5 to 7.2 GHz) and 1 dual-band GNSS antenna for L1 and L5 constellations

CPE system

- High performance omnidirectional antenna for marine/coastal and mobility/transport applications - Wide frequency range: cellular antennas (617 to 6000 MHz) and dual band WLAN (2.4 GHz and 5 to 7.2 GHz). - Cross-polarized antennas (horizontal and vertical) for improved performance - High gain performance with a peak gain of 6 dBi for robust signal strength. - CPE transformation: Compatible with SWIRL-BASE for integration of 5G routers, increased performance through short coaxial cable routing - Innovative heat sink design for improved temperature regulation - UV and salt water protected for marine and coastal conditions
