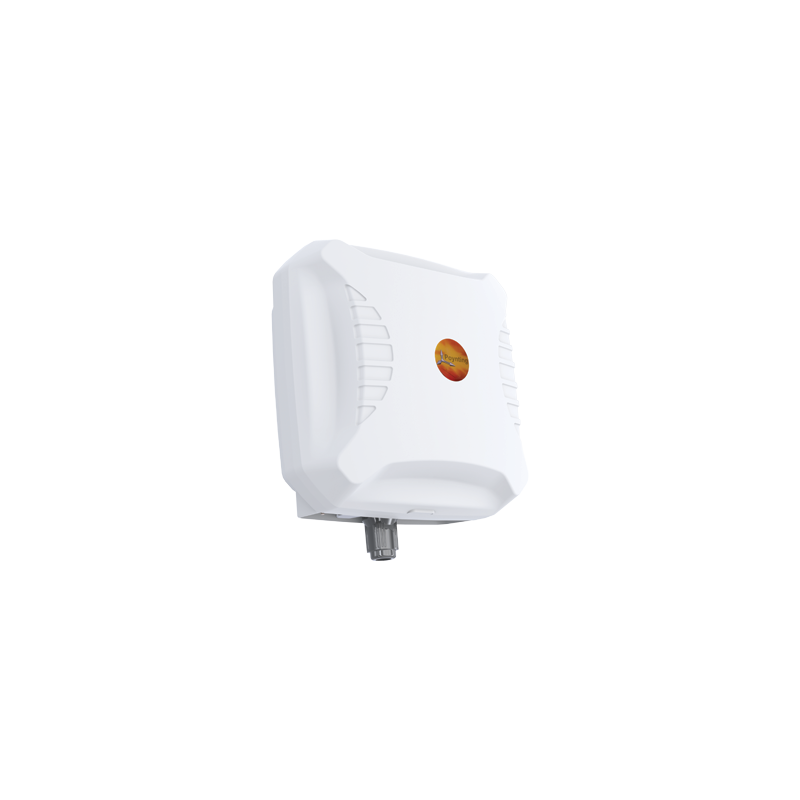

Poynting Antenna A-EPNT-0001-V1-01 5G/LTE Antenna SMA (F) - White

X-Polarized, Omni-Directional, 5G/LTE & WI-FI CPE 617-3800 MHz, 5 DBI 4x4 LTE/5G (MIMO) 2x2 Wi-Fi (MIMO)

overview

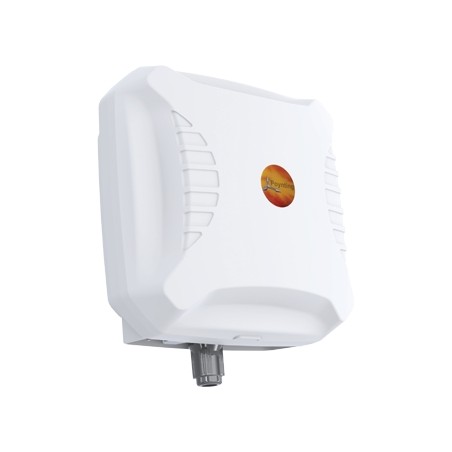

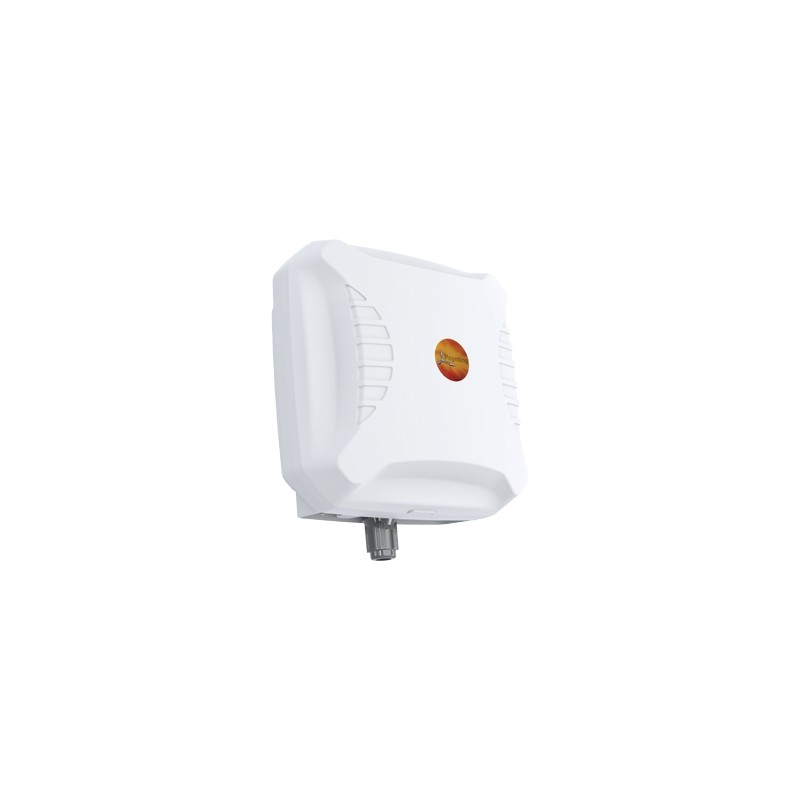

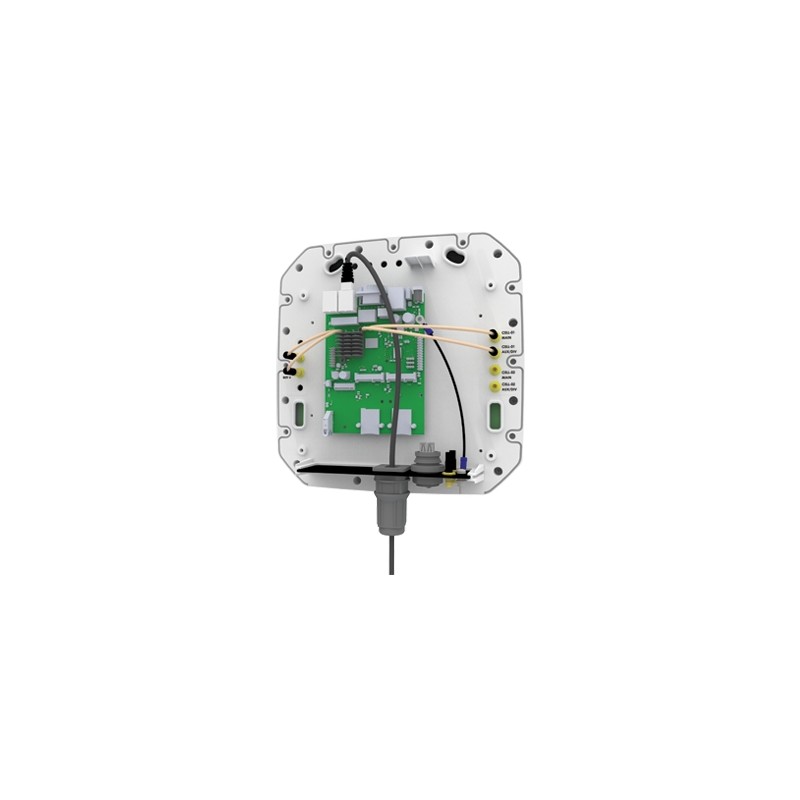

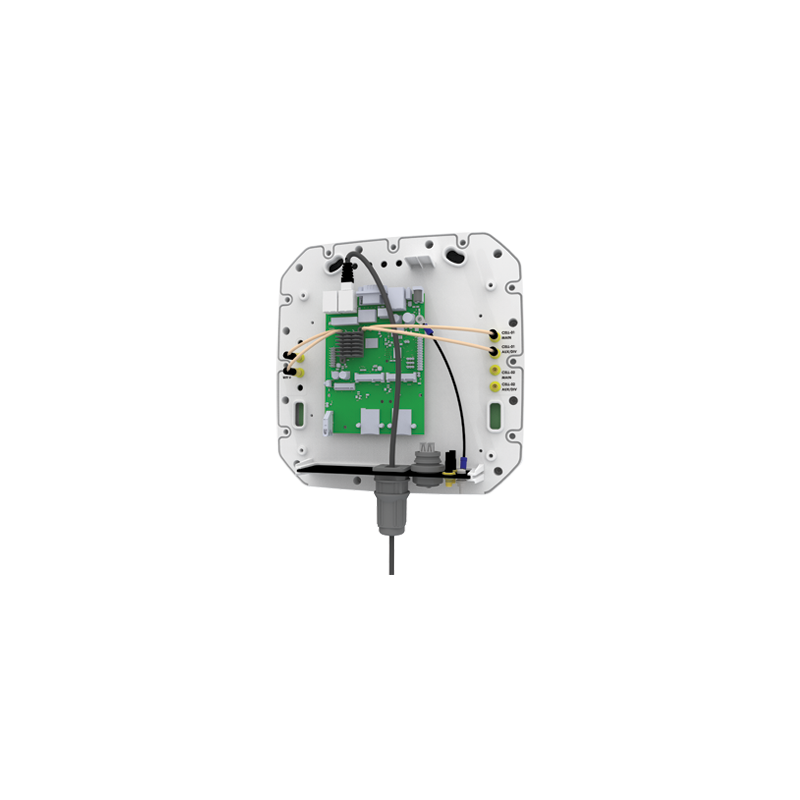

Poynting Antennas introduces its brand-new ePoynt series of antenna enclosures. Designed to accommodate a wide range of router modules, the ePoynt enclosures transform the antenna enclosure into Customer Premises Equipment (CPE)—simply add your own LTE/5G router. The ePoynt enclosure can accommodate routers up to 185 x 145 x 45 mm³ in size.

The ePoynt-1 (EPNT-1) combines our cross-polarized omnidirectional antennas for enhanced performance. This is ideal for built-up areas where multiple base stations are located nearby, but where greater stability and throughput are required due to the improved MIMO configuration.

The EPNT-1 features four cross-polarized antennas, making it ideal for 4x4 MIMO or dual 2x2 MIMO routers. The antennas provide wideband coverage from 617 to 3800 MHz, making them ideal for LTE and 5G deployments with a peak gain of 5 dBi. The EPNT-1 also includes two omnidirectional dual-band Wi-Fi antennas covering the 2.4 GHz and 5-6 GHz Wi-Fi bands for 2x2 MIMO.
The antenna is weatherproof and waterproof according to IP65.

Characteristics

• Ultra-broadband coverage for 2G, 3G, 4G and 5G
• Omnidirectional antennas with a peak gain of 5 dBi
• 4x4 MIMO for improved performance

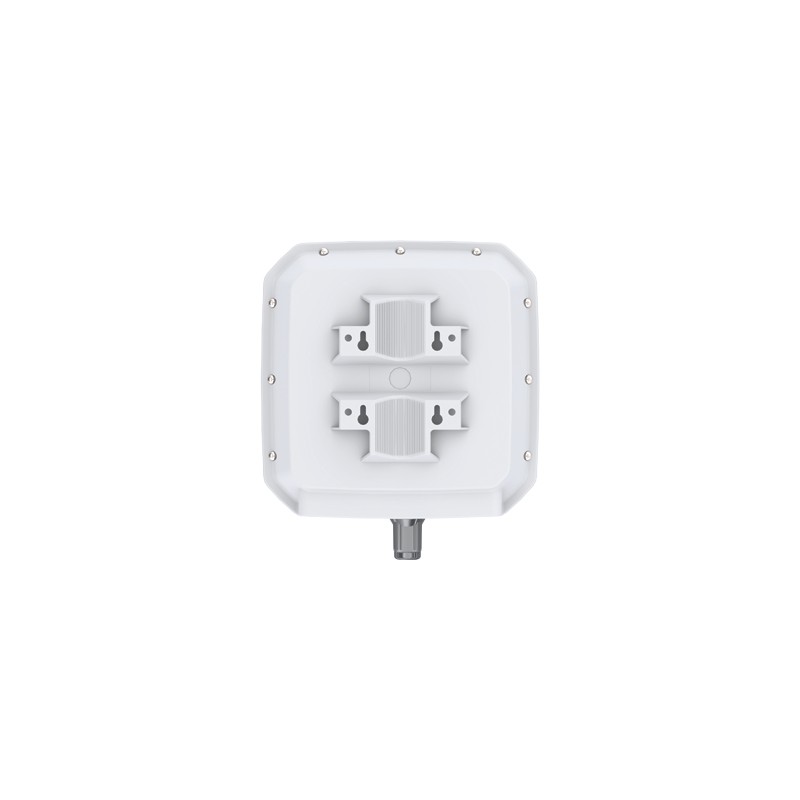

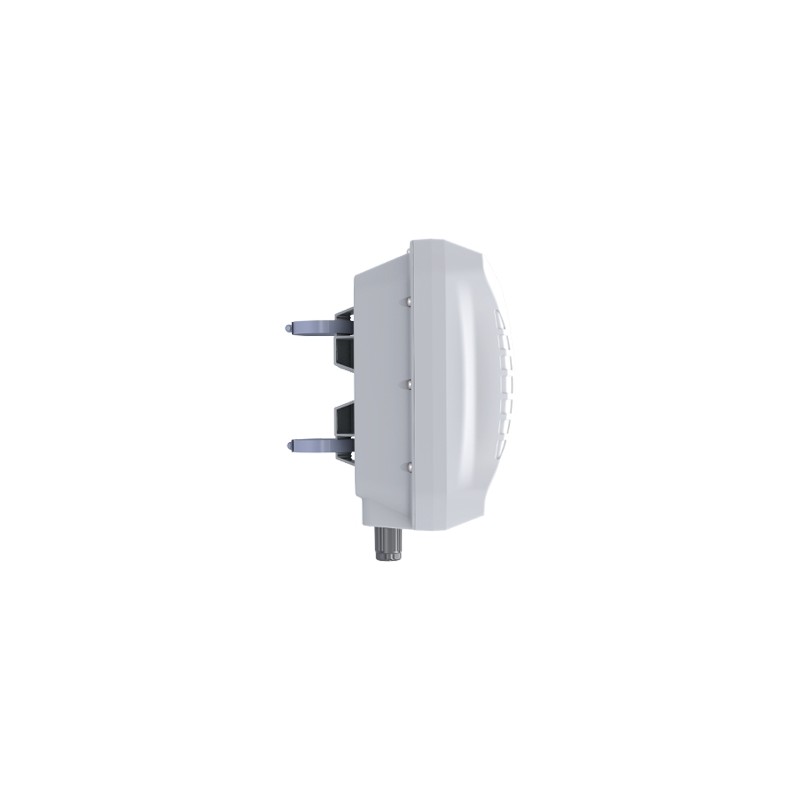

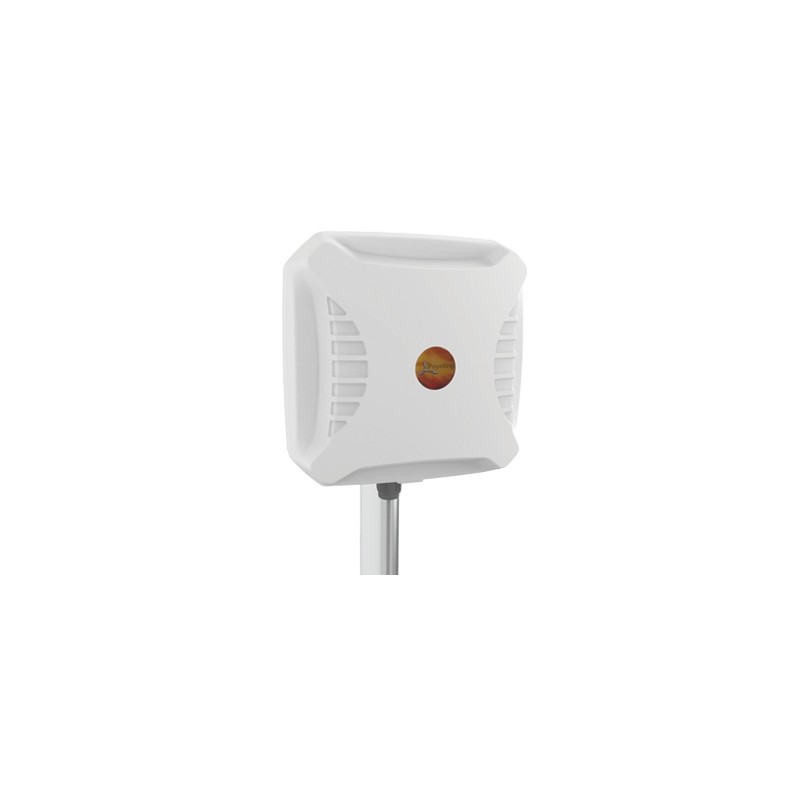

• Wall, mast and window mounting possible
• Weatherproof and waterproof housing (IP65)
• 1 x external USB port, 1 x Ethernet port and 2 x external SMA
• Connections for additional antennas

scope

• Outdoor antenna for Fixed Wireless Access (FWA)
• 5G/LTE internet connectivity for consumers
• Industrial and commercial 5G/LTE deployment
• Improving reception in urban and rural households
• Intelligent environmental and water systems for M2M and IoT
• Oil and gas communication systems

Technical data

• Frequency ranges:

1. 617 - 960 MHz
2. 1427 - 1517 MHz
3. 1710 - 2700 MHz
4. 3400 - 3800 MHz

• Gain (max):

1. 1 dBi @ 617 - 960 MHz
2. 2.5 dBi @ 1427 - 1517 MHz
3. 5 dBi @ 1710 - 2700 MHz
4. 4.5 dBi @ 3400 - 3800 MHz

• VSWR: <2.5:1
• Power supply load capacity: 10W
• Input impedance: 50 ohms (nominal)
• Polarization: Cell 1: ±45
• Cell 2: Vertical & Horizontal linear
• Path to Earth: Yes
• Wind resistance: ≤220 km/h
• Temperature range (operation): -40°C to +70°C
• Environmental conditions: Outdoor/Indoor
• Protection class/standard for water ingress protection: IP 65
• Salt spray: MIL-STD 810G/ASTM B117
• Relative humidity during operation: Up to 98%
• Storage humidity: 5% to 95% - non-condensing
• Storage temperature: -40°C to +70°C
• Housing flammability rating: UL 94-HB
• Impact resistance: IK 08
• Product Safety &
• Environment:
• Complies with CE and RoHS standards
