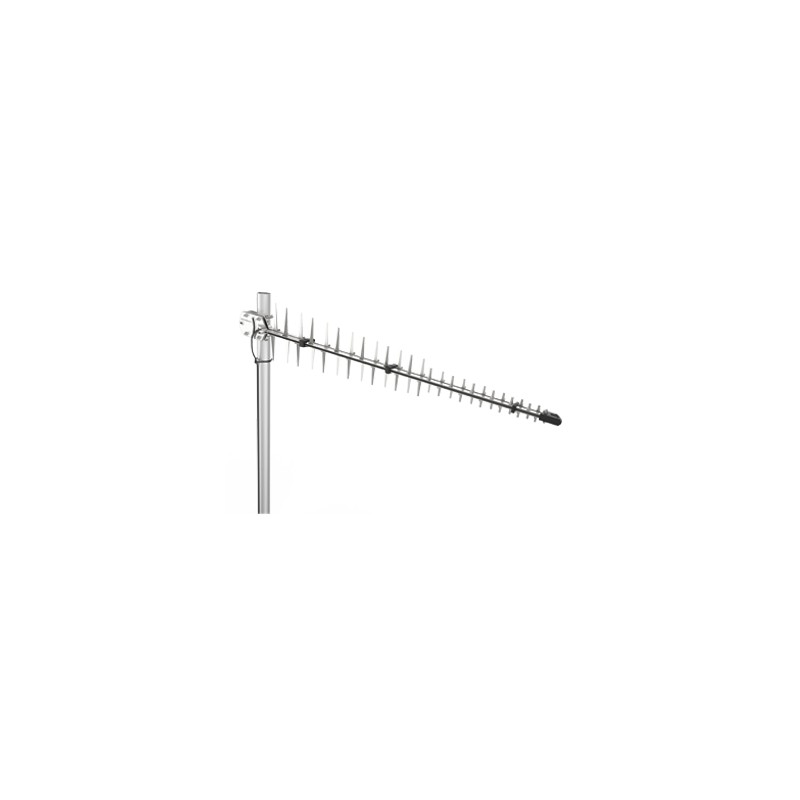

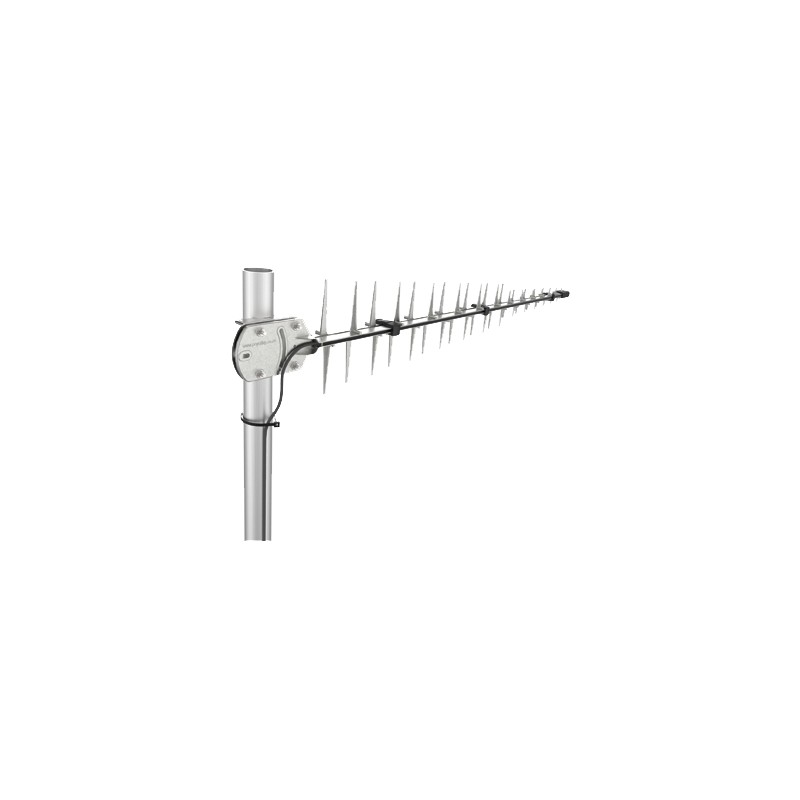

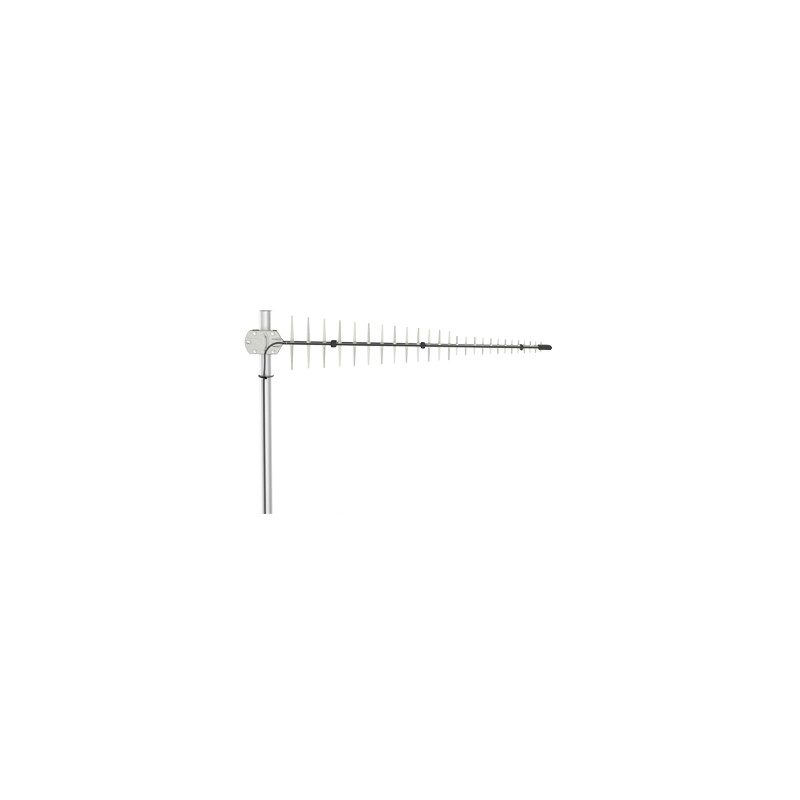

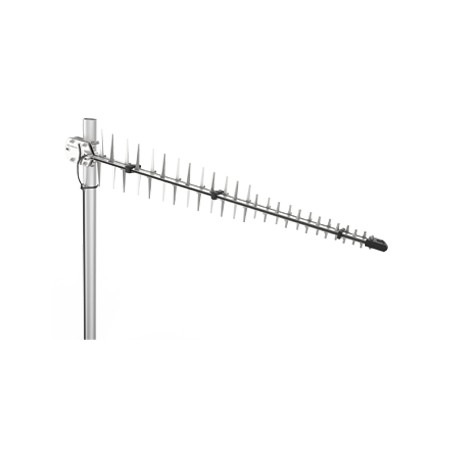

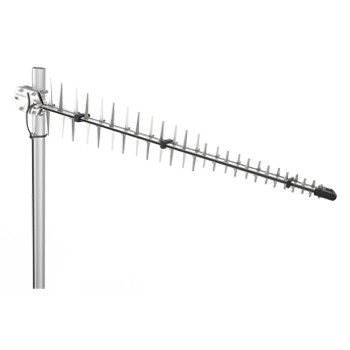

Poynting · Antennas · LTE/GSM · Mast · A-LPDA-0092 · silver · SMA (M) · LoRa Helium · 11dbi Yagi/Mast · SMA -Male · 7m cable

Poynting LPAD-92 LTE/GSM antenna N-TYPE (F) LoRa Helium compatible! - Silver

GSM antenna 2x 11dbi Yagi/Mast LPDA-A0092 7m cable SMA M / LTE compatible

overview

This high-gain, wideband directional antenna covers all international cellular and data bands, including GSM 900/GSM1800/UMTS/LTE bands. It also covers the extended cellular and WiMAX bands, such as the European/American Digital Dividend bands and the licensed and unlicensed 2.3-2.7 GHz data bands. Its configuration is suitable for various wireless communication systems. This antenna is unique in its combination of ultra-wideband operation and consistent high-gain performance. It has been successfully deployed in extreme weather conditions in Africa and Europe with virtually zero dropouts. It is a firm favorite in all areas where operators struggle with signal issues. It is ideal for any application that utilizes the GSM network (LTE/HSPA/3G/EDGE/GPRS).

Characteristics

• High gain directional antenna
• Easy alignment with a main beam of approx. 50° width
• Broadband, covers multiple operating frequencies
• Mast mounting possible
• Light
• Water and dust resistant
• Huge improvement in wireless data reliability
• Four-year track record in all climate conditions from snow to desert to tropical conditions

scope

• Urban and rural areas
• Antenna of choice for rural areas due to high gain
• In case of poor data signal reception (indoors or outdoors)
• With slow data transfer
• If the connection is unstable
• Increases the transmission security of the system
• LTE peripheral areas (near an LTE area but outside of range)
• Flexibility of the network operator
• Since the antennas are broadband, a new antenna is not required for each network operator
• works in most networks
• LoRa Helium suitable

Technical data

• Frequency band: 698 - 3800 MHz
• Gain: 11 dBi
• 4G LTE
• 5G Ready
• Wi-Fi: 2.4-2.5 GHz
• LoRa suitable
• Waterproof according to IP65
• Operating temperature: -40° to +70° C
• Fire resistant
• Wind survival time: ≤160 km/h
• Temperature range (operation): -40°C to +70°C
• Environmental conditions: Outdoor/Indoor
• Protection class/standard for water ingress: IP 65
• Salt spray: MIL-STD 810F/ASTM B117
• Relative humidity during operation: Up to 98%
• Storage humidity: 5% to 95% - non-condensing
• Storage temperature: -40°C to +70°C
• Housing flammability rating: UL 94-HB
• Impact resistance: IK 08
• Product safety & environment:
• Complies with CE and RoHS standards
