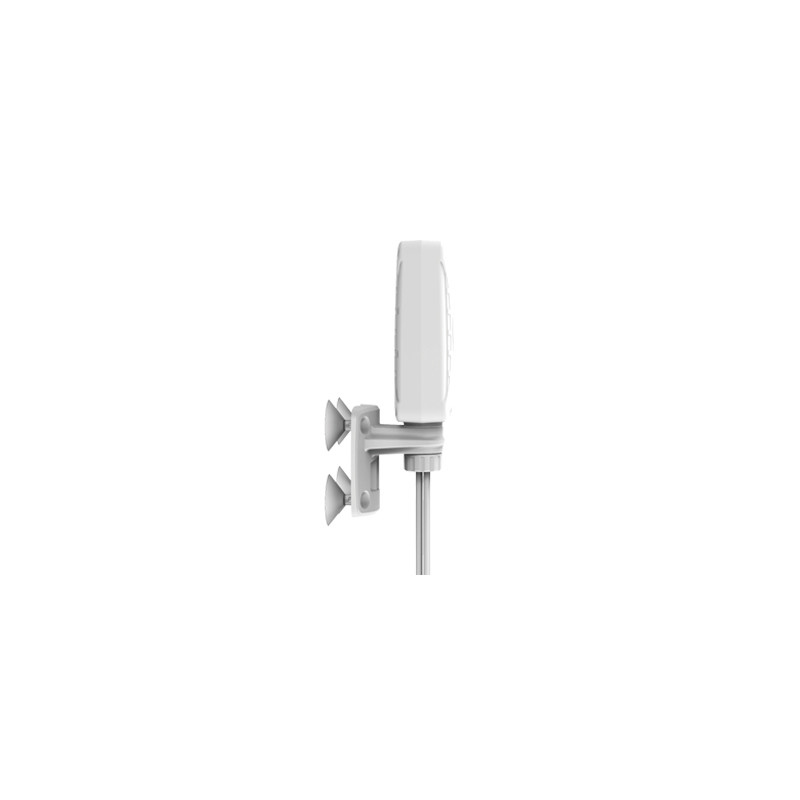

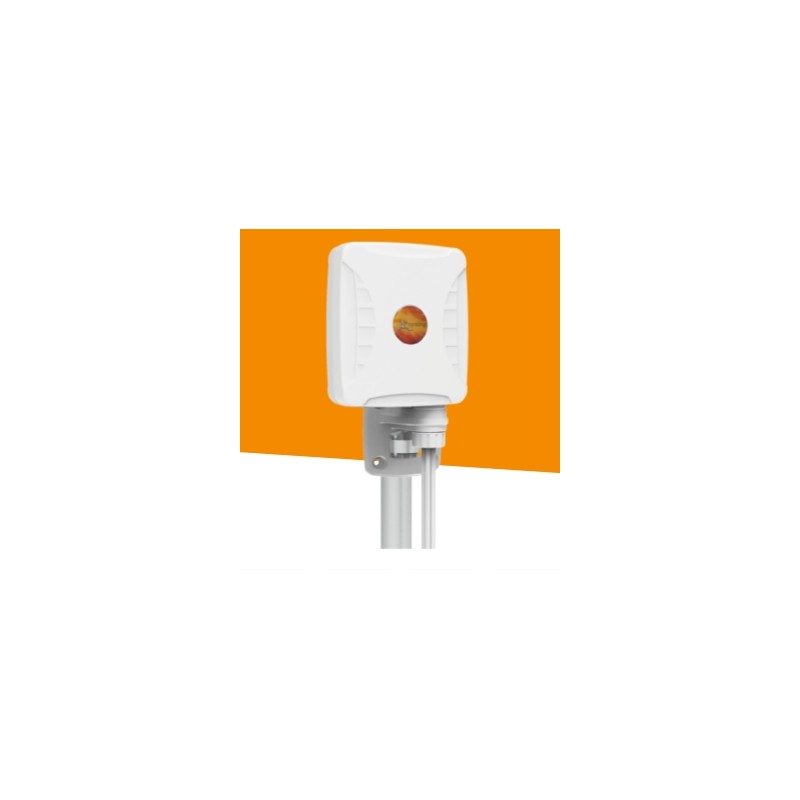

Poynting Antennas 5G/LTE Mast/Wall/Window A-XPOL-0001-V2-21 SMA (M) 3dbi 2x2 MIMO Cross Polarized Omnidirectional

Poynting XPOL-A0001-V2-21 SMA (M)

GSM antenna 3dbi 2x2 MIMO Cross Polarized Omnidirectional LTE 5G antenna XPOL-A0001-V2-21

overview

The XPOL-1-5G is Poynting's second generation "V2" of its highly popular 2x2 cross-polarized MIMO antenna. A 4x4 MIMO variant is also available for specialized applications. The antenna has been completely redesigned compared to the previous generation, featuring a completely new housing and antenna design. The antenna now covers the newer 3400-3800 MHz bands as well as the sought-after lower 698 MHz band and is suitable for 2G, 3G, 4G, and 5G. The antenna's performance is exceptional in the following frequency bands: 698-960 MHz, 1700-2700 MHz, and 3400-3800 MHz.
The radiation patterns of this antenna are omnidirectional and well-controlled. This makes the antenna perfect for a wide range of applications, including urban, rural, agricultural, and commercial. The robust mechanical housing design makes the antenna weather-, dust-, and vandal-resistant, giving it an IP65 rating suitable for harsh environments.

Characteristics

• New 3400 to 3800 MHz, 5G band
• Broadband, including the latest 3.5 GHz bands
• X-polarized 2x2 or 4x4 MIMO antenna
• Wall or mast mounting possible
• Light and robust
• weatherproof (IP65)
• High pattern consistency across bands for 4G/5G carrier aggregation

scope

• Outdoor antennas for Fixed Wireless Access (FWA)
• LTE/5G internet connections for consumers
• Industrial and commercial LTE/5G implementations
• Improving reception in urban households
• Telemetry access for electricity, energy and water
• Communication systems for oil and gas
• Municipal and state systems
• Repeaters and amplifiers to improve coverage

Technical data

• Frequency band: 698 - 3800 MHz
• 2x2 LTE MIMO antenna
• Compatible with: 2G, 3G, 4G/LTE
• 5G Ready
• Waterproof according to IP65
• Cable type: HDF-195
• Cable length: 5 meters
• Connection Type: SMA - Male
• Case color: white
• Wind survival time: ≤250 km/h *Except for window mounting configuration
• Temperature range (operation): -40°C to +70°C
• Environmental conditions: Outdoor/Indoor
• Protection class/standard for water ingress: IP 65
• Salt spray: MIL-STD 810G/ASTM B117
• Relative humidity during operation: Up to 98%
• Storage humidity: 5% to 95% - non-condensing
• Storage temperature: -40°C to +70°C
• Housing flammability rating: UL 94-HB
• Impact resistance: IK10
• Product dimensions 247mm x 157mm x 88mm
• Packaging dimensions:
• 270 mm x 190 mm x 100 mm
• Radome material: UV-stable ASA
• Radome color: Brilliant White Pantone P 179-1 C
• Mounting type: wall, mast and window mounting
