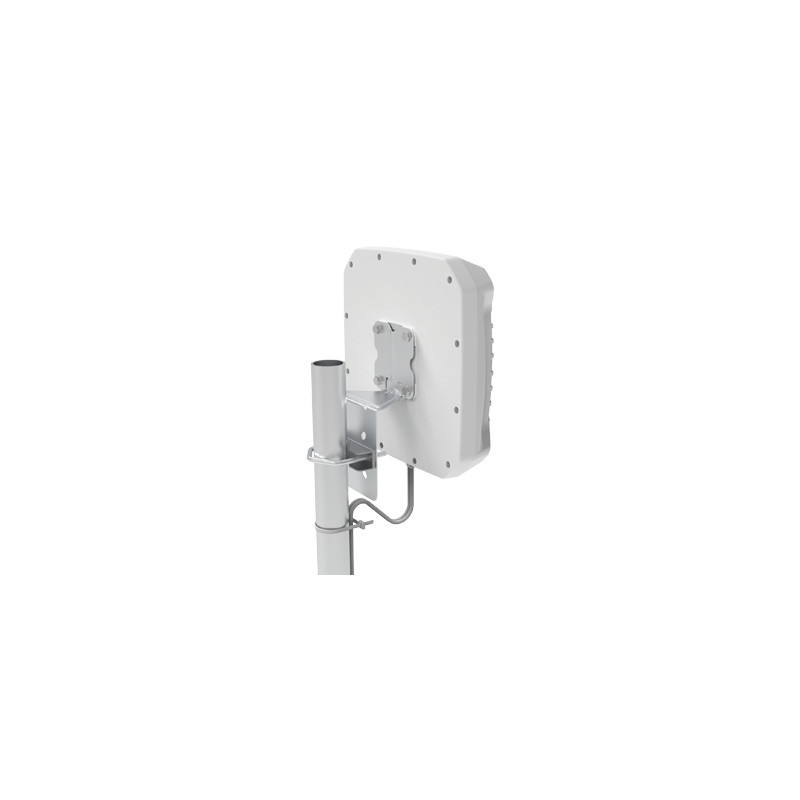

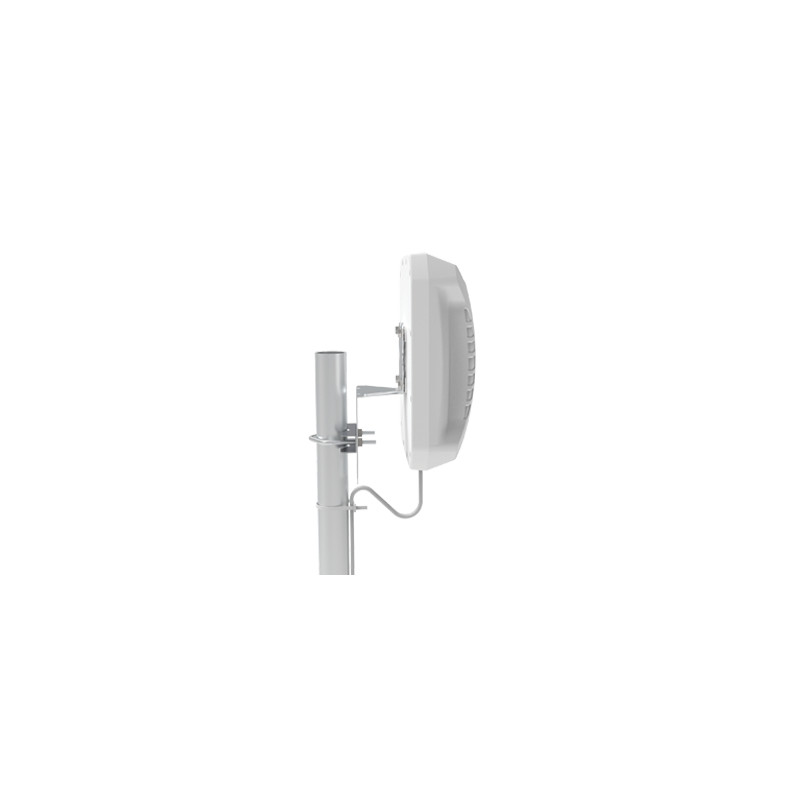

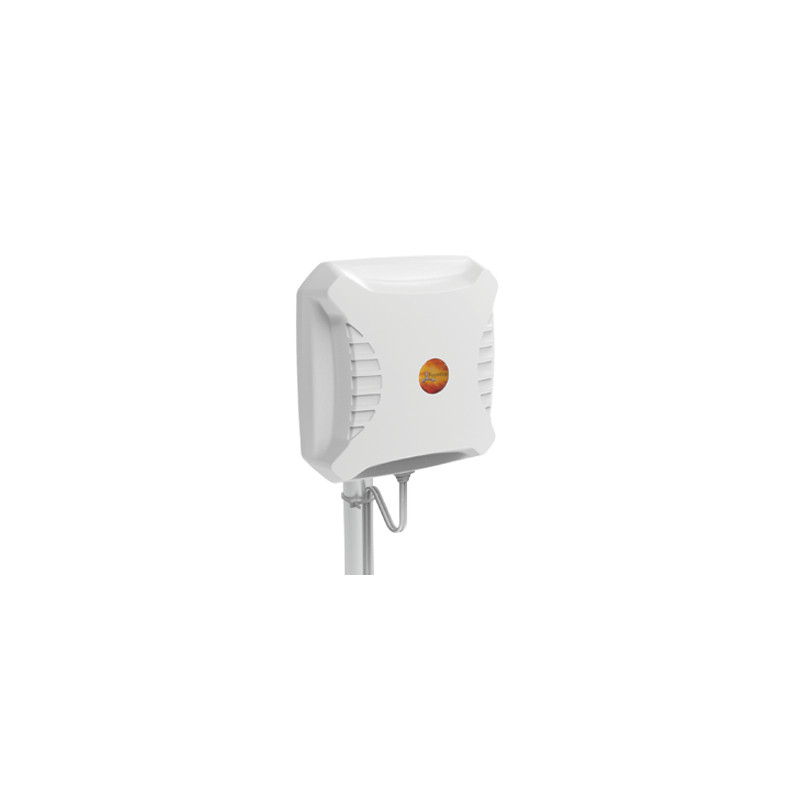

Poynting Antennen 5G/LTE Mast/Wand A-XPOL-0002-V3-01 wei? SMA (M) LoRa Helium 11dbi Flat-MIMO SMA 5 Meter Kabel

Poynting Antenna A-XPOL-0002-V3-01 5G/LTE SMA (M) LoRa compatible! - White

UNI-DIRECTIONAL LTE ANTENNA 698MHz - 3800MHz, 11dBi 2X2 MIMO

overview

The XPOL-2-5G is Poynting's third generation, "V3," of this highly popular cross-polarized (XPOL) cellular 2x2 MIMO antenna. The antenna housing looks essentially the same as the second generation, "V2," but has been completely redesigned internally. We utilized advanced metamaterial technology, utilizing artificial magnetic conductors (AMC) and a new, registered/patent-pending radiator configuration that has been proven to deliver exceptional bandwidth and gain enhancements. The radiation patterns of this antenna are exceptionally well-controlled, further enhancing the antenna's performance.

The XPOL-2-5G antenna covers the newer 3400-3800 MHz bands, which were previously not covered by our V2, and is suitable for 2G, 3G, 4G, and 5G. This antenna performs exceptionally well in the following frequency bands: 698-960 MHz, 1700-2170 MHz, 2300-2700 MHz, and 3400-3800 MHz. In addition to the new bands, the gain in the 1700 MHz and 2.7 GHz bands is approximately 3 dB higher than the "V2" over the same frequency bands! Our "V2" antenna already outperformed most competitors in these bands, so this significant gain improvement demonstrates the benefits of the new advanced materials and novel radiator design.

So if it was a car, we installed an engine with completely new technology that produces twice the power under the hood - it may look the same, but just wait until you turn on the ignition!

Characteristics

• New advanced metamaterial technology
• Exceptional performance on key 4G/5G bands
• High gain for the antenna size
• Broadband 2×2 MIMO 4G/5G broadband antenna
• LoRa suitable
• Backward compatible 2G/3G/4G/LTE antenna (5G ready)
• Two cross-polarized antennas in one housing for optimal LTE performance
• IP65 weather/dust and vandal resistant housing.

scope

• Outdoor antennas for Fixed Wireless Access (FWA)
• LTE/5G internet connections for consumers
• LTE/5G installations for industry and commerce
• Reception improvement for households in cities and rural areas
• LTE/5G data distribution for agriculture and livestock farming
• Telemetry access for electricity, energy and water
• Communication systems for the oil and gas industry
• Municipal and state systems
• Repeaters and amplifiers to improve coverage

Technical data

• Frequency band: 698 – 960 MHz & 1710 – 3800 MHz
• Coax cable type: Twin HDF-195
• Coax cable length: 5 meters
• Connection type SMA - Male
• Wind survival: Antenna Wind survival: ≤ 250 km/h
• Including Z-Bracket Wind Survival: ≤160km/h
• Optional bracket BRKT-030* is required for wind speeds ≤250 km/h
• Temperature range (operation): -40°C to +80°C
• Environmental conditions: Outdoor/Indoor
• Protection class/standard for water ingress: IP 65
• Salt spray: MIL-STD 810F/ASTM B117
• Relative humidity during operation: Up to 98%
• Storage humidity: 5% to 95% - non-condensing
• Storage temperature: -40°C to +80°C
• Housing flammability rating: UL 94-HB
• Impact resistance: IK 08
