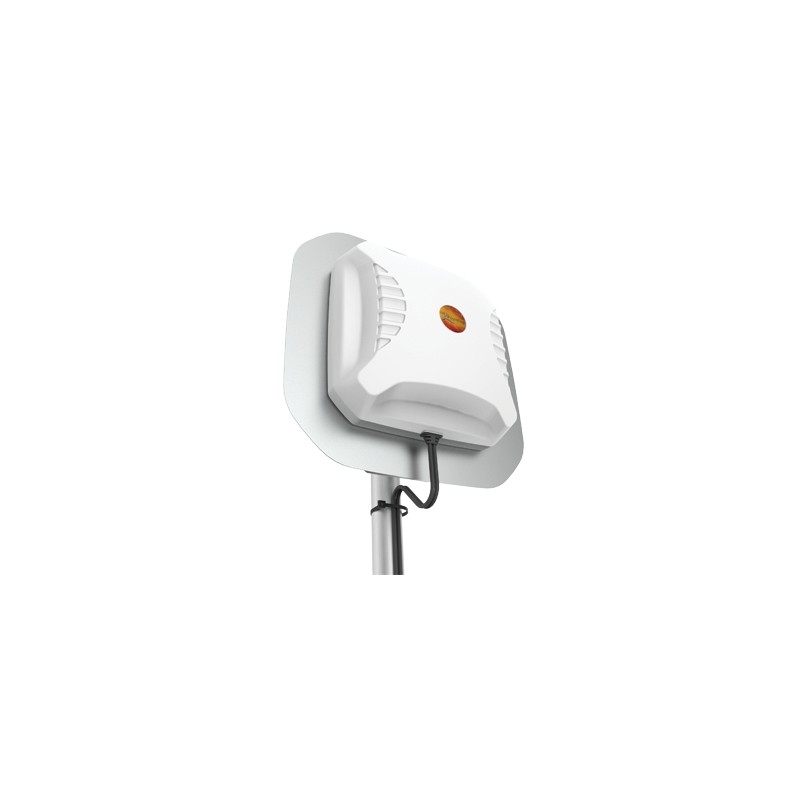

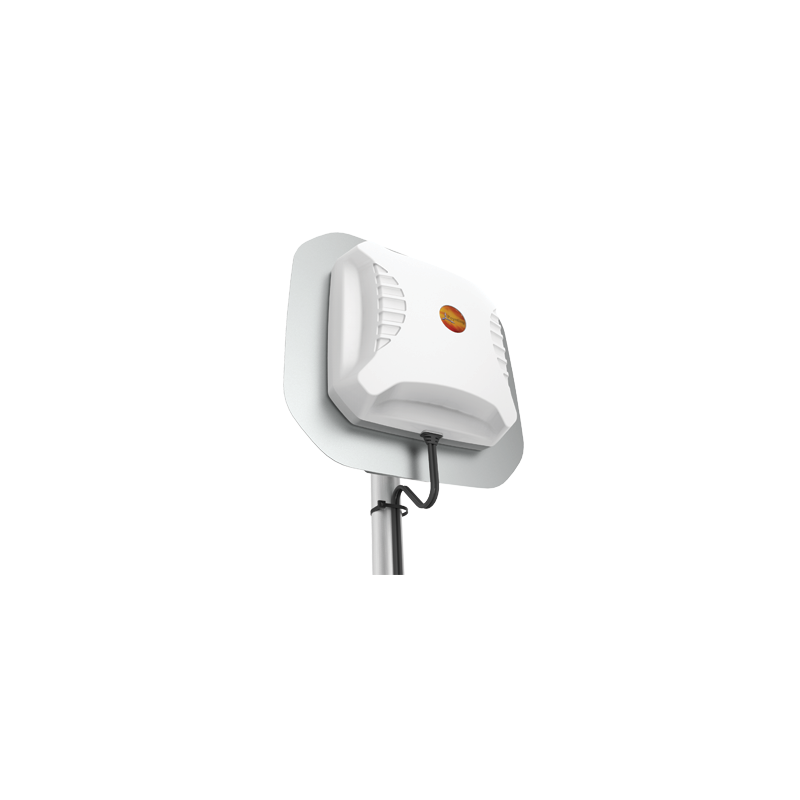

Poynting LTE/GSM Antenna XPOL-0016 SMA (M) - White

8dbi Cross Polarized Flatpatch LTE Antenna IP65 5m SMA-M

overview

The XPOL-16 covers multiple LTE frequency bands, including 450-470 MHz, 790-860 MHz, and 1710-2170 MHz. The antenna is an innovative solution for improving reception of 4G, 3G, and 2G network signals. The XPOL-16 is a dual-polarized antenna for the entire LTE band and can be wall- or pole-mounted. The antenna is equipped to provide client-side MIMO and diversity support for the networks of today and tomorrow by integrating two separately fed ultra-wideband elements into a single housing. This is a cost-effective solution for improving signal reception and throughput. The XPOL-16 antenna increases signal reliability, ensures higher data throughput for users, and provides a stable, high-quality connection. This improves the subscriber experience and ensures customer loyalty. It is ideal for all applications that use the GSM network (LTE/HSPA/3G/EDGE/GPRS).

Characteristics

• Future-proof broadband LTE antenna
• Covers the new frequency band 450 - 470 MHz
• Backward compatible with 3G and 2G technologies
• Two antennas in one housing for optimal LTE performance
• Improves the user experience of mobile subscribers
• Increased connection stability
• Weather and vandal-proof housing (IP 65)

scope

• Machine-to-machine (M2M) applications
• Urban and rural areas
• Poor data signal reception (indoors or outdoors)
• with slow data transfer
• with unstable connection
• Increasing system transmission reliability
• LTE fringe areas (near an LTE area, but just out of range)
• Flexibility of the network operator
• Since the antennas are broadband, a new antenna is not required for each network operator
• works in most networks

Technical data

• Frequency band: 450 – 470, 790 – 860, 1710 – 2170 MHz
• Gain: max 8dbi
• Cross polarization
• VSWR <2.5:1
• Cable length: 2x 5m HDF195 SMA-M

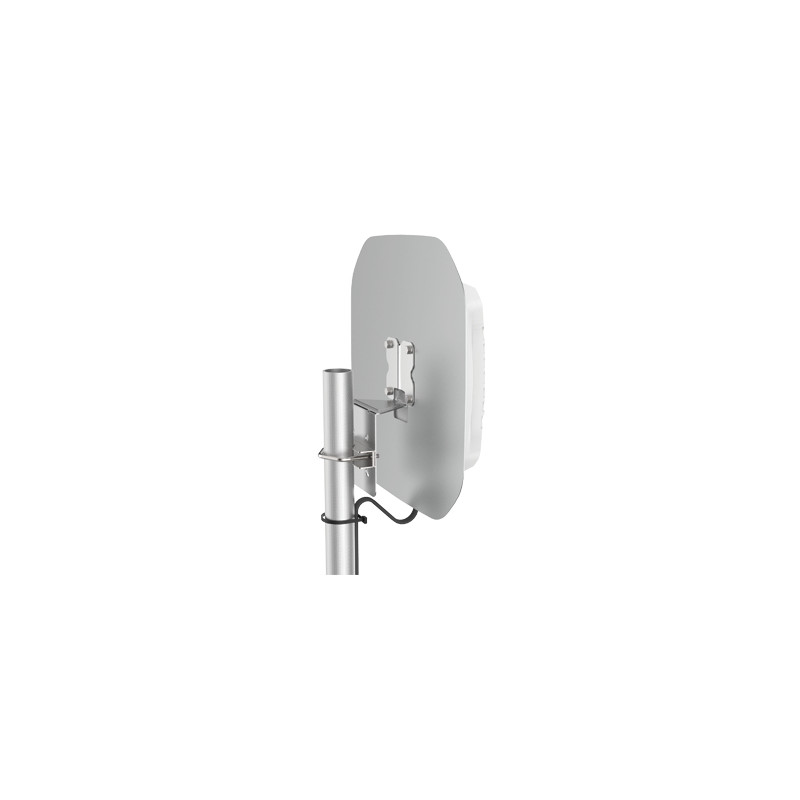

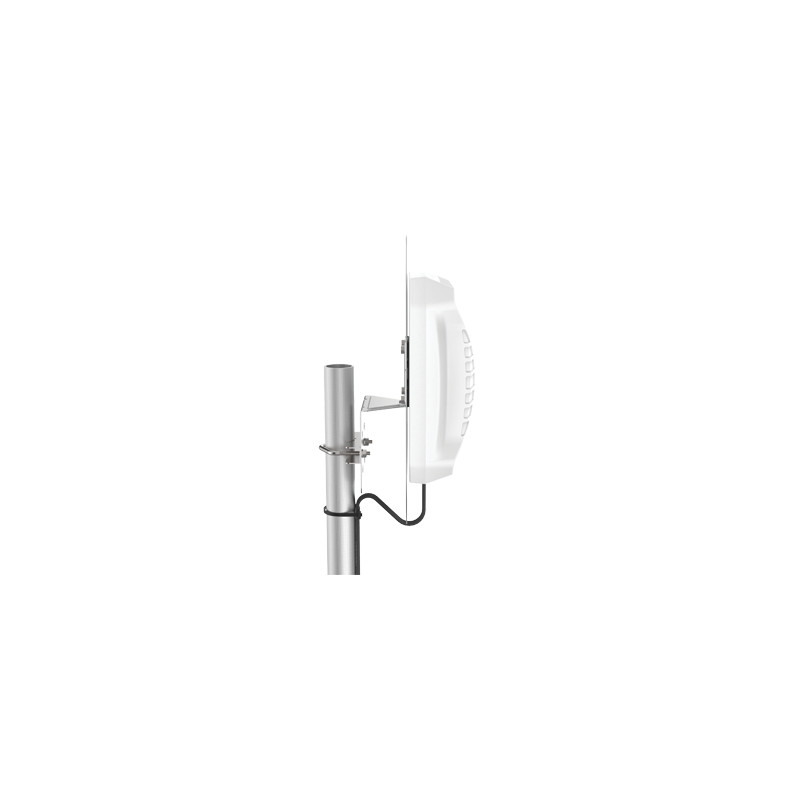

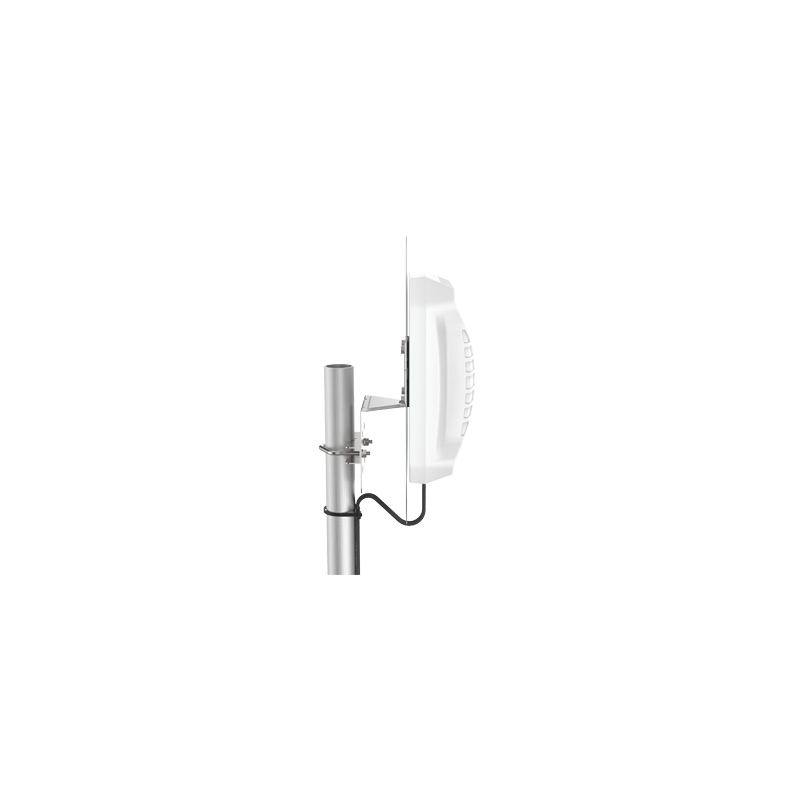

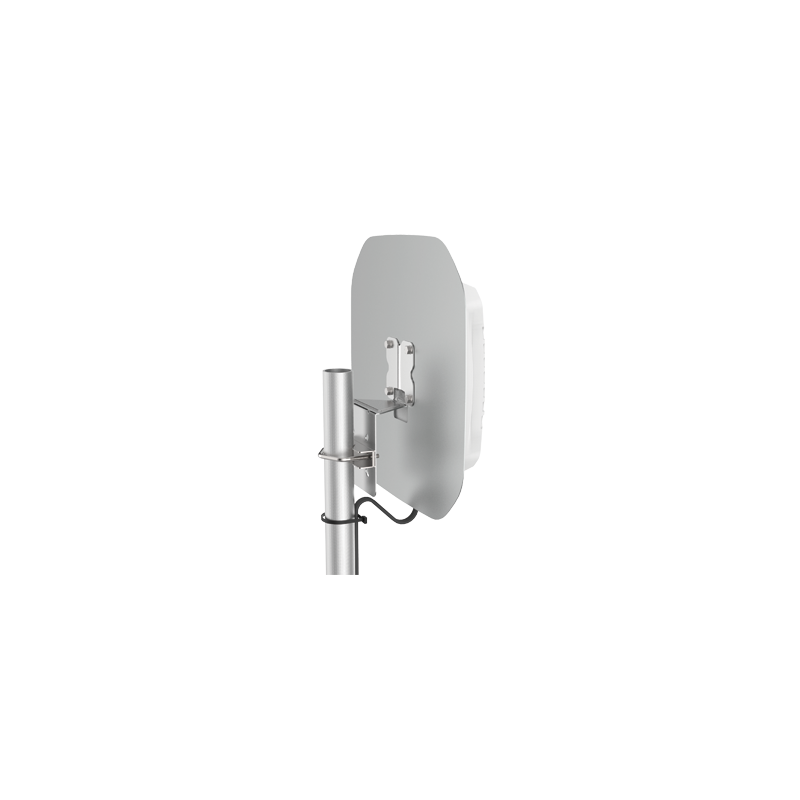

• Dimensions: 200 x 160 mm • Mounting: Wall mounting or mast mounting
• Wind survival time: <120 km/h
• Temperature range (operation): -40°C to +70°C
• Environmental conditions: Outdoor/Indoor
• Protection class/standard for water ingress: IP 65 (NEMA 4X)
• Salt spray: MIL-STD 810F/ASTM B117
• Relative humidity during operation: Up to 98%
• Storage humidity: 5% to 95% - non-condensing
• Storage temperature: -40°C to +70°C
• Housing flammability rating: UL 94-HB
• Impact resistance: IK 08
• Product dimensions 360mm x 360mm x 151mm
• Packaging dimensions: 360 mm x 360 mm x 98 mm
• Weight: 1.98 kg
• Packed weight: 2.38 kg
• Radome material: ABS (halogen-free)
• Radome color: Pantone - Cool Grey (1C) RAL - 7047
• Mounting type: wall and pole mounting
