Poynting Antennas LTE/GSM Mast/Wall A-OMNI-0121-V3 white SMA (M) 2.4dbi omnidirectional/wall 8m cable SMA-M "LTE"

Poynting LTE/GSM Antenna A-OMNI-0121-V3 Omnidirectional/Wall SMA (M) - White

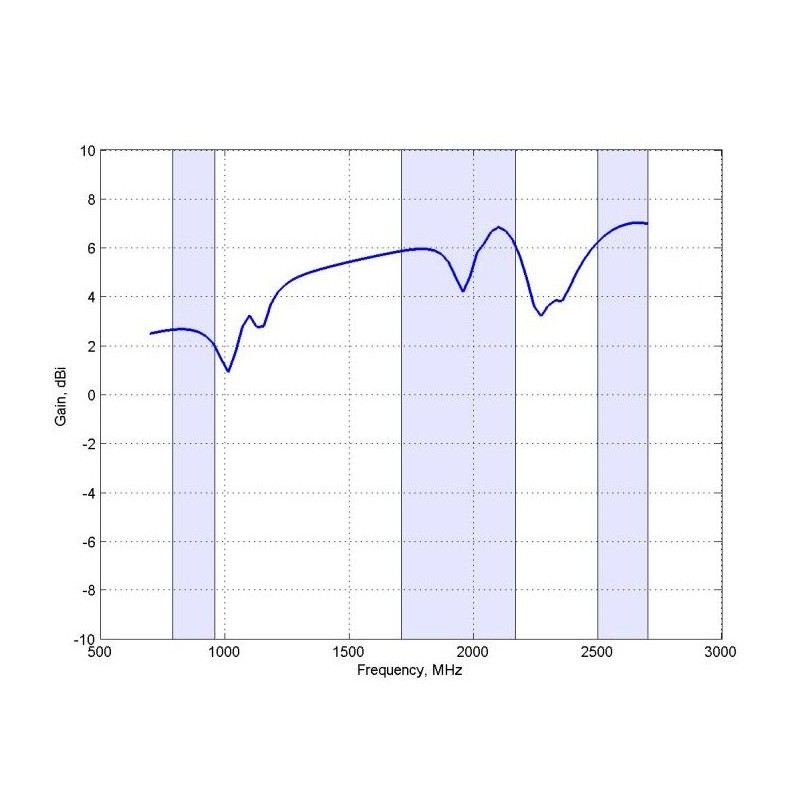

OMNI-DIRECTIONAL, WIDEBAND LTE ANTENNA 690 - 960 MHz, 1.8 dBi 1710 - 2700 MHz, 6 dBi

overview

This medium-gain omnidirectional antenna covers the GSM 900, GSM 1800 / UMTS, and LTE frequency bands. It is a lightweight antenna that is easy to install. It is a cost-effective omnidirectional solution as it comes with an 8 m cable. The antenna is a popular choice among installers due to its versatile base station capabilities. It is also ideal for machine-to-machine (M2M) applications that communicate over the GSM network (GPRS/ EDGE/ 3G/ HSPA/ LTE).

Characteristics

• Coverage of the frequency bands GSM 900, GSM 1800/UMT and LTE
• Increased connectivity stability
• Machine-to-Machine (M2M) capabilities
• Consistently high gain over a very wide frequency range
• Popular choice among installers due to its versatile base station
• Vandal- and waterproof housing (IP 65)

Areas of application

• Enables the provision of rural and remote wireless services.
• M2M communication (ATMs, financial data processing, telemetry, etc.).
• Extend wireless data transmission to areas with weak signals (can increase the range of the connection by a factor of 3 or more).
• In case of poor data signal reception (indoor or outdoor).
• With slow data transfer
• Unstable connection.
• Increasing the reliability of system transmission

Technical data

• Coax cable type - HDF-195
• Coax cable length - 8 meters
• Connection Type - SMA - Male
• Omnidirectional antenna with medium gain

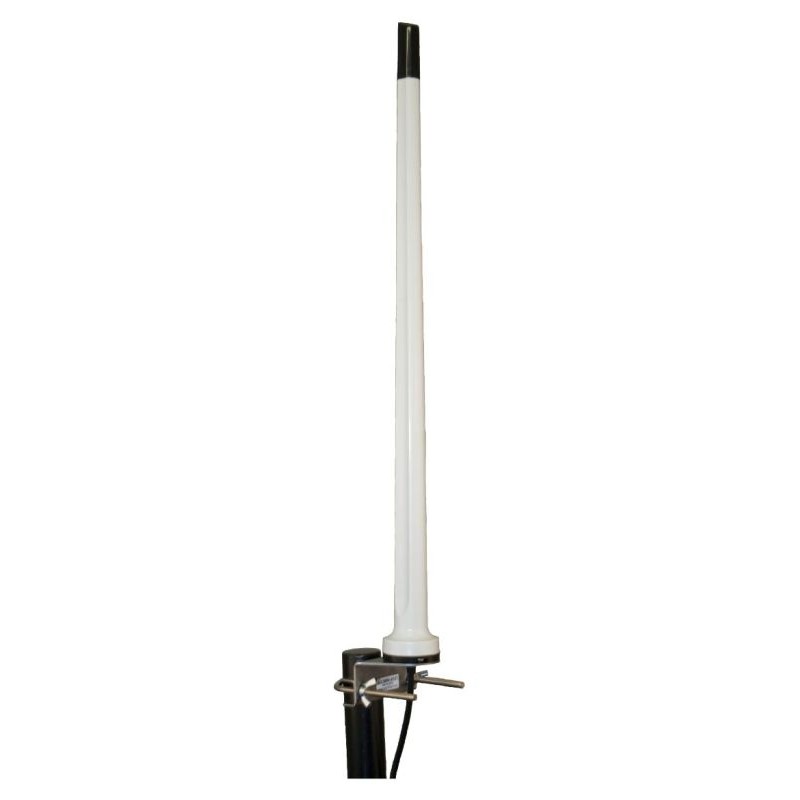

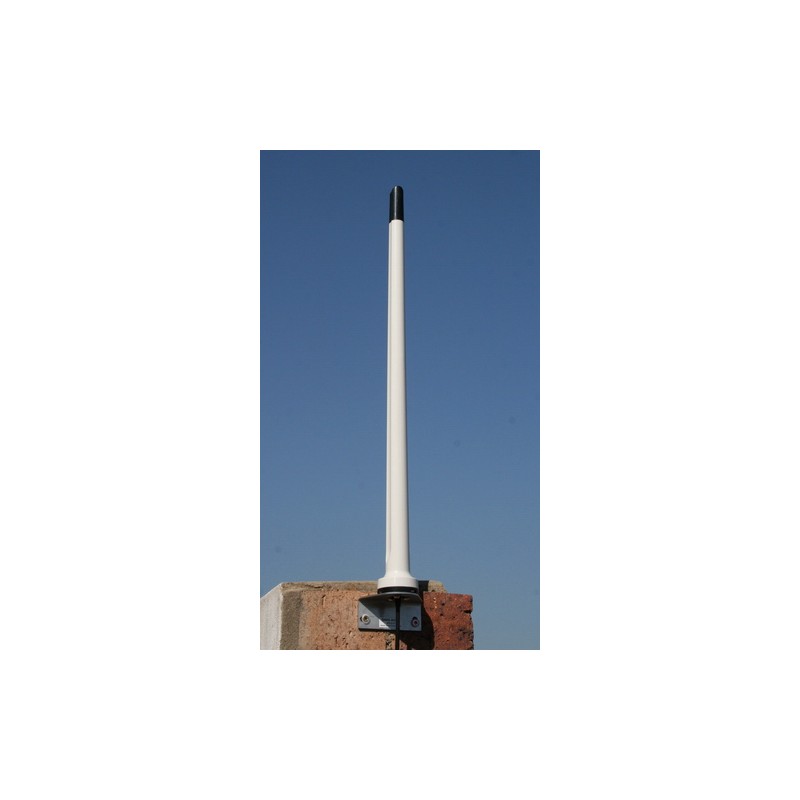

• Wall and pole mounting possible
• Agile base station
• Light weight
• Covers most international GSM and LTE bands
• Wind survival time: ≤160 km/h
• Temperature range (operation): -40°C to +70°C
• Environmental conditions: Outdoor/Indoor
• Protection class/standard for water ingress: IP 65
• Salt spray: MIL-STD 810F/ASTM B117
• Relative humidity during operation: Up to 98%
• Storage humidity: 5% to 95% - non-condensing
• Storage temperature: -40°C to +70°C
• Housing flammability rating: UL 94-HB
• Impact resistance: IK 08
• Product dimensions 590mm x 80mm x 55mm
• Packaging dimensions: 595 mm x 130 mm x 65 mm
• Radome material: ABS (halogen-free)
• Housing color: white
• Mounting type: Pole and wall mounting
