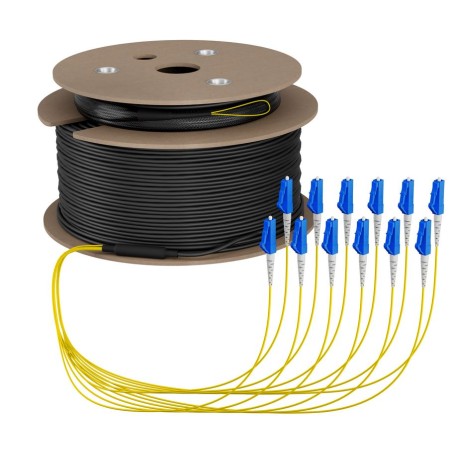

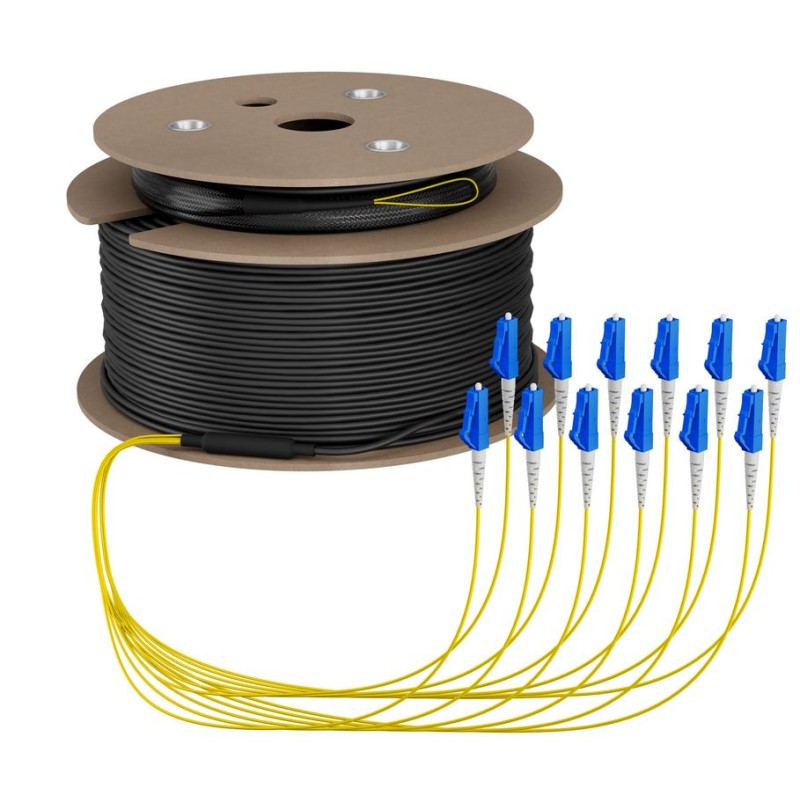

Fibre-optic cable, U-DQ(ZN)BH 12G 9/125 trunk cable, LC/LC OS2 200 m, reel,

* Order-specific, non-cancellable*, benefits at a glance: Fast delivery: Standard lengths of up to 200 m in standard commercial quantities available in approx. 1 week Reduced installation costs: No need for expensive splicing and termination equipment; Reduced installation time: Cables ready for direct installation; Traceable quality: Cables with serial number and test report

Performance features: 12 fibres per cable; OS2 fibre class; factory-manufactured, polished and functionally tested; tapered cable whips terminated at both ends (maximum length 1 m); individual cables marked with cable markers (numbers) Serial number on the cable Attenuation report supplied for each individual fibre Supplied with fabric sleeving at both ends to aid pulling Supplied in polybags up to 40 m, on disposable reels from 50 m

PRODUCT FEATURES*Fibre type: Single-mode 9/125 Category OS2 Number of fibres 12 Bend protection sleeve fitted Connector type, port 1 12 x LC connector, port 1 Colour: blue Connector type, port 2 12 x LC connector, port 2 Colour: blue Maximum tensile force 200 N Minimum bending radius (static) 90 mm Minimum bending radius (dynamic) 180 mm Cable type U-DQ (ZN) H*Cable construction: Multifibre cable Ø 5.8 mm*Sheath colour: black Sheath material: LSZH*Operating temperature: 0–50 °C Storage temperature: –20–70 °C*Insertion loss 1310 nm < 1.5 dB
