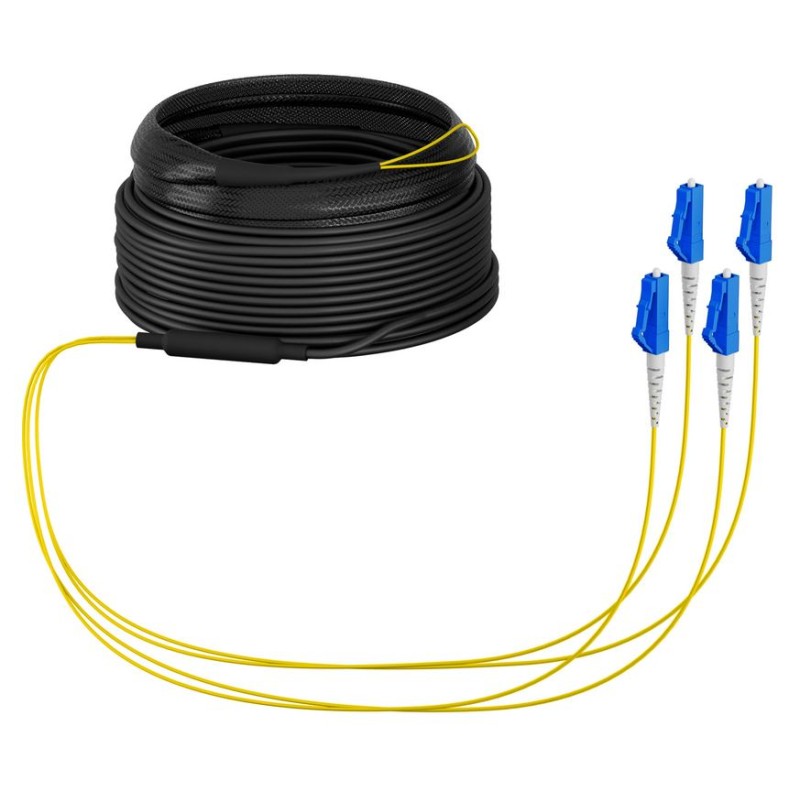

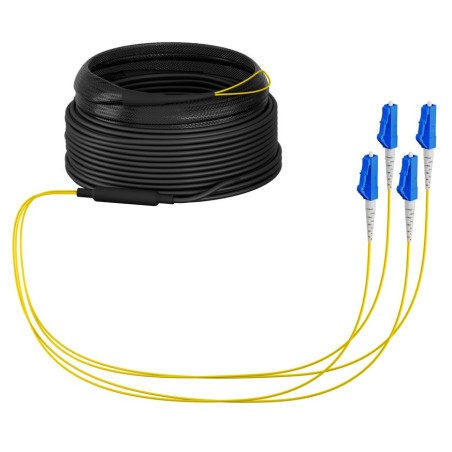

Fibre-optic cable, U-DQ(ZN)BH 4G 9/125 trunk cable, LC/LC OS2 70 m, reel,

* Made to order, non-cancellable*, Features: 8 fibres per cable; OS2 fibre class; factory-manufactured, polished and functionally tested; tapered cable whips terminated at both ends (maximum length 1 m); individual cables marked with cable markers (numbers) Serial number on the cable Attenuation report supplied for each individual fibre Supplied with fabric sleeving at both ends to aid pulling Supplied in polybags up to 40 m; from 50 m on a disposable drum Raw cable: CPR Class Dca. Length of pull-through aid: 130 cm; diameter: approx. 10 mm (4-fibre); technical specifications: APC version: No Number of fibres: 8 Operating temperature: -40 – 70 °C Bend-optimised fibre: no Insertion loss at 1310 nm: &lt 1.5 dB Fibre type: single-mode 9/125 Flame-retardant: Yes Cable construction: Multifibre Cable type: U-DQ (ZN) BH Cable Ø: 5.8 mm Category: OS2 in accordance with ITU-T G657A1 Kink protection sleeve: attached Storage temperature: –40 – 70 °C Sheath colour: black Sheath material: LSZH Maximum tensile force: 300 N Cable splitter dimensions: 11.5 x 252 mm Minimum bending radius (dynamic): 20xOD mm Minimum bending radius (static): 10OD mm 10xOD mm Connector 1 colour: blue Connector 2 colour: blue Connector type, connector 1: LC Connector type, connector 2: LC Packaging: poly bag
