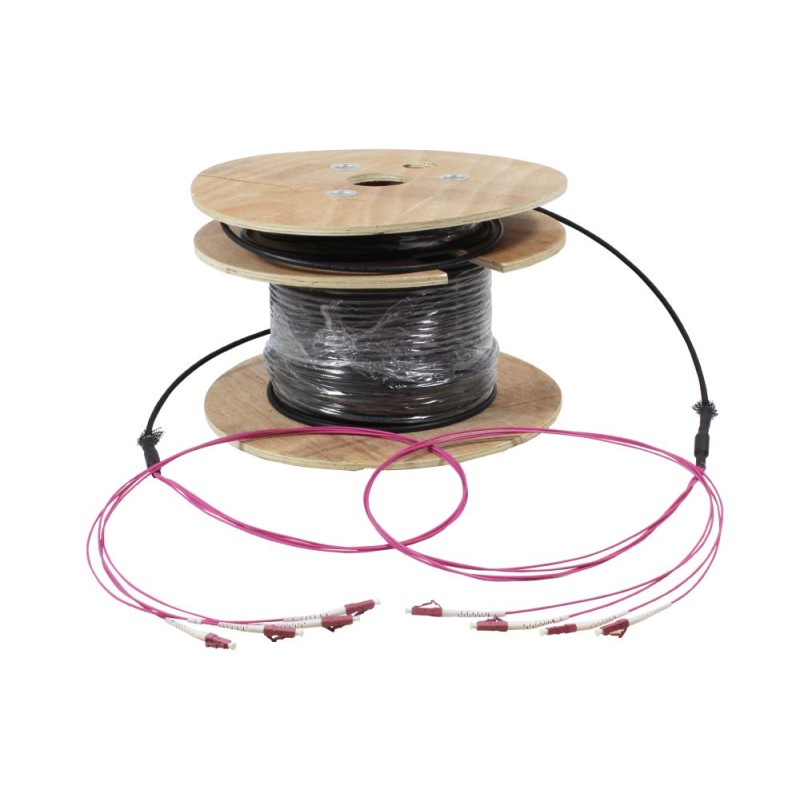

Fiber optic cable, trunk cable U-DQ(ZN)BH 4G 50/125, LC/LC OM4 200m, reel, Synergy21

* Order-related, cannot be canceled*, performance features: Length of the pull-in aid of 130cm, diameter: approx. 13mm, drill hole should be &gt20mm. 4 fibers per cable Fiber class OM4 Factory production, polishing and function test Staggered cable whips assembled on both sides (longest length approx. 1m) Identification of the stepped individual cables with cable markers (numbers) Serial number on the cable Attenuation protocol for each individual fiber is included Delivery with fabric tube on both sides as a pulling aid Delivery up to 40 m in a plastic bag, from 50 m on disposable reel Bend protection sleeve attached Connector type connection 1: 4 x LC connector connection 1: Color ericaviolet Connector type connection 2: 4 x LC connector connection 2: Color Erikaviolet Maximum tensile force 800 N Minimum bending radius (static) 60 mm Minimum bending radius (dynamic) 120 mm Cable type U-DQ (ZN) H*Cable construction Multi-fiber cable Ø 6.0 mm*Sheath color black Sheath material LSZH*Working temperature -40 - +70 °C Storage temperature -40 - +70 °C*Insertion loss 850nm &lt0,3 dB Quality class Multimode A/1 according to IEC-61753-222-2 Connector Conforms to standard IEC 61754-20 Cable Conforms to standard IEC 60793-2 UV resistant IEC 60794-1-22-F14/ISO 4892-3 Longitudinally waterproof IEC 60794-1-22-F5B
