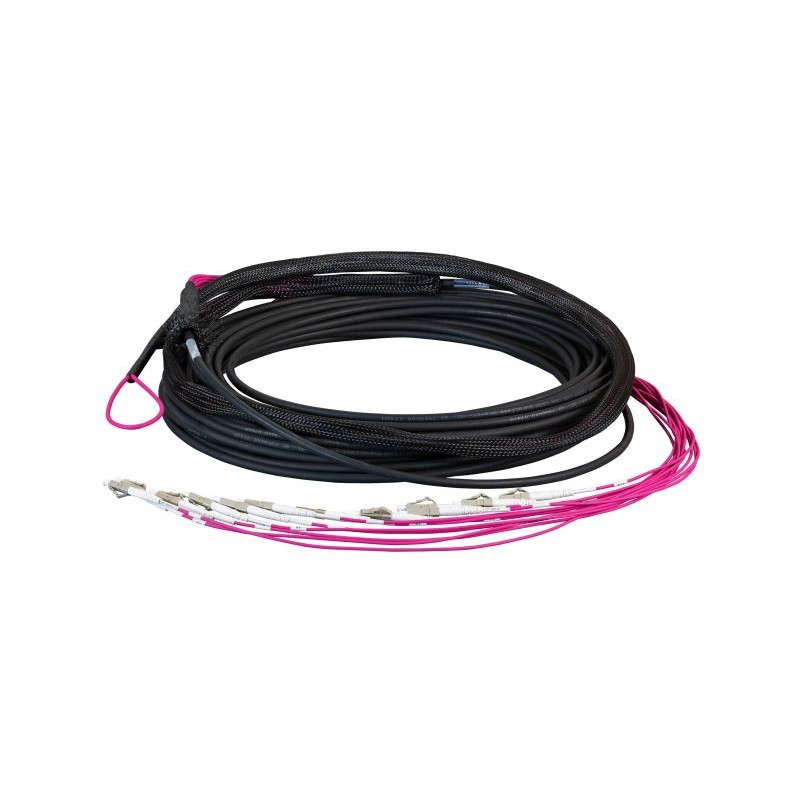

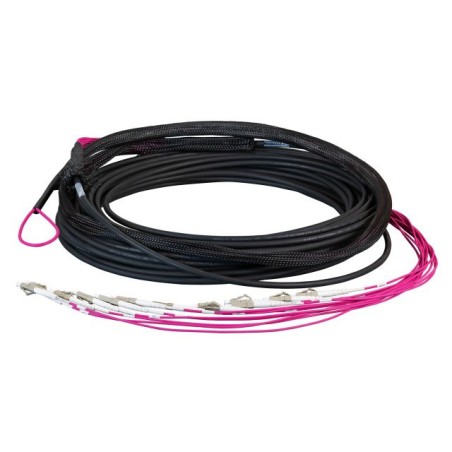

Fiber optic cable, trunk cable U-DQ(ZN)BH 12G 50/125, LC/LC OM4 140m

* Order-related, cannot be canceled*, advantages at a glance: Fast delivery: Standard lengths up to 200 m available in commercial quantities approx. 1 week Reduction in installation costs: No expensive splicing and assembly equipment required Reduction in installation time: Cable ready for direct installation Traceable quality: Cable with serial number and measurement protocol

Performance features: 4, 8 or 12 fibers per cable Fiber class OM3 or OM4 Factory production, polishing and function test Staggered cable whips assembled on both sides (longest length 1 m) Marking of the individual cables with cable markers (numbers) Serial number on the cable Attenuation protocol for each individual fiber is included Delivery with fabric tube on both sides as a pulling aid Delivery up to 40 m in polybag, from 50 m on disposable reel

PRODUCT FEATURES*Fiber type Multimode 50/125 Category OM4 Number of fibers 4 Bend protection sleeve attached Connector type Connection 1 4 x LC connector connection 1 Color beige Connector type Connection 2 4 x LC connector connection 2 Color beige Maximum tensile force 200 N Minimum bending radius (static) 90 mm Minimum bending radius (dynamic) 180 mm Cable type U-DQ (ZN) H*Cable construction Multi-fiber Cable Ø 6,0 mm*Sheath color black Sheath material LSZH*Working temperature 0 - 50 °C Storage temperature -20 - 70 °C*Insertion loss 850nm &lt0.3 dB Quality class multimode A/1 according to IEC-61753-222-2 Connector Conforms to standard IEC 61754-20 Cable Conforms to standard IEC 60793-2
