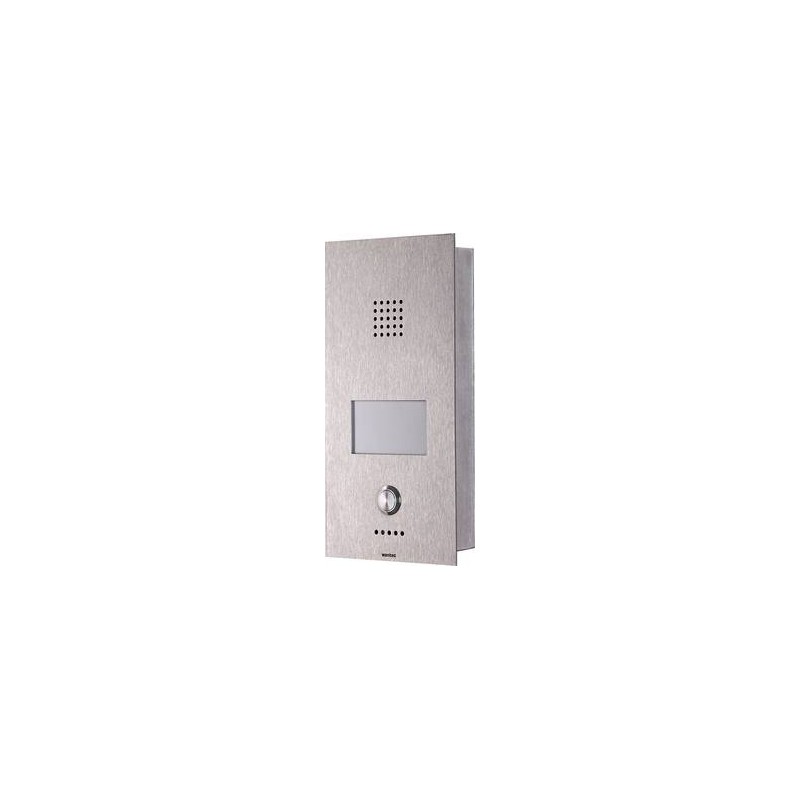

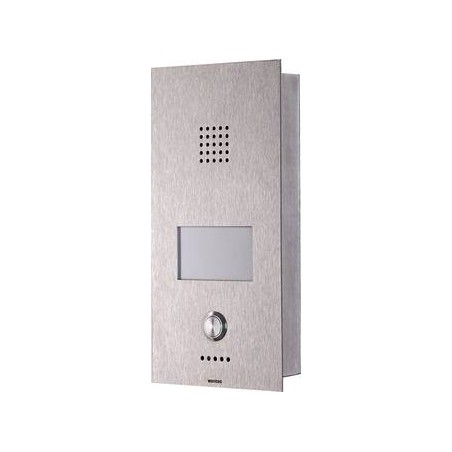

Wantec TFE MONOLITH C 240 IP 1 Taste

MONOLITH IP/VoIP door intercom for integration into an existing network with SIP server or as a peer-to-peer device for direct dialing to a terminal device. The door call can be answered with image via SIP video phones, Windows pop-up program, Android app, a Fritz!Fon C4 or with an iPhone/iPad app. Pure voice communication is possible via all telephones depending on the system configuration.

The MONOLITH C can be expanded with several cameras; depending on the app, it is possible to receive up to 4 streams at the same time. For example, you can add a camera with a side view of the door to the front camera of the MONOLITH C; you can then switch between the two cameras on the respective app before answering the call.

New! With the MONOLITH C IP it is also possible to display a live image on a Fritz!Fon C4. When the phone rings, the MONOLITH C IP transmits a live stream at around 1 image/sec. to the C4.

Main features Front panel made of V4A stainless steel, seawater-resistant with special finish to prevent fingerprints Two independent relays can be controlled, e.g. for door opener and door chime HTTP commands for home control can be sent when ringing and opening the door Power supply via power pack 12V direct or alternating current, approx. 500mAh or PoE according to IEE 802.3af Altern. A+B White LED background lighting for nameplate, homogeneous, max. 5% difference Ethernet 10/100Mb in 10BaseT or 100BaseTX standard Web server integrated for configuration with 170° color camera in the Vision version IP camera MJPEG and JPEG, HD 720p SIP connection via IP telephone system or FritzBox as well as external providers Web firmware can be upgraded Web interface for control and configuration Connection to IP telephone system or Internet Volume of microphone and speaker adjustable
