RS485 extension module
Compact RS-485 expansion module: The module enables reliable alarm integration and communication via RS-485 - ideal for access and security systems Expandable & flexible: Supports cascading of up to 20 devices with 100 m transmission range - ideal for larger installations Dual function for alarm inputs and outputs: 8 alarm channels can be used as inputs or outputs as required - configurable via 1-bit switch
RS485 extension module
Compact RS-485 expansion module with alarm IO

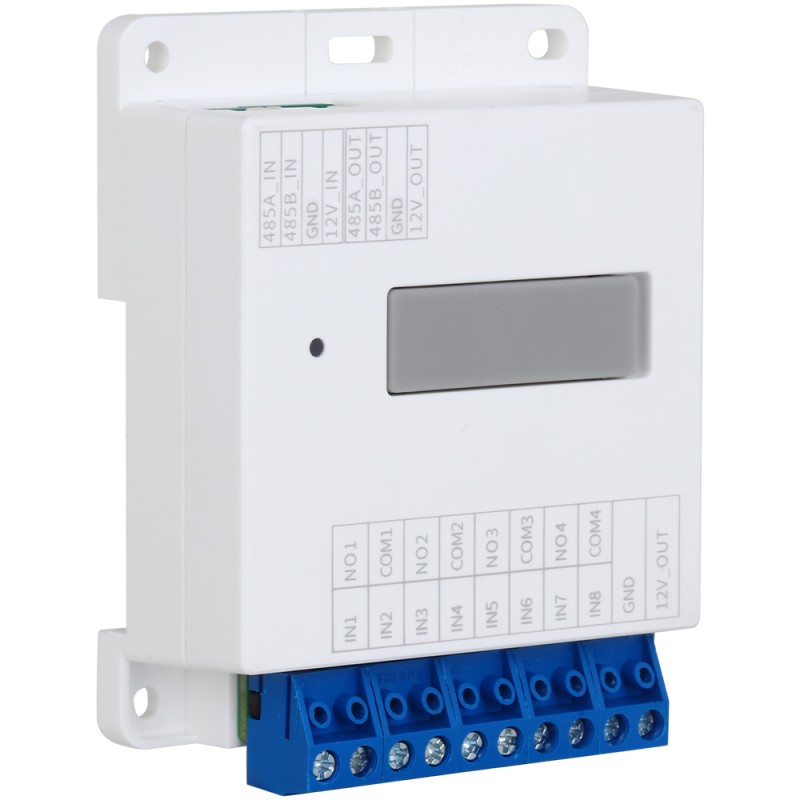

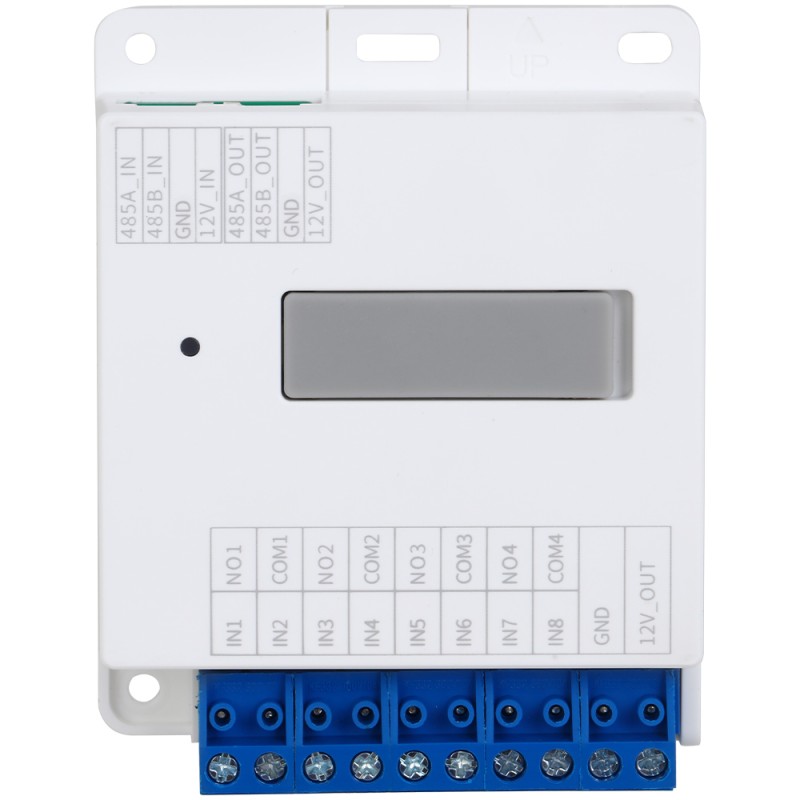

The DHI-DEE118A is a versatile RS-485 expansion module that is ideal for expanding access or alarm systems. With 8 alarm inputs, 4 configurable outputs and the ability to cascade up to 20 devices, it offers a flexible solution for extensive security installations.
Product features
- Expandable alarm IO functionality: 8 alarm inputs and 4 alarm outputs, freely switchable via 1-bit switches - ideal for customisable installations.
- Cascadable up to 20 devices: With separate power supply, the module supports up to 20 units with stable data transmission over 100 m - ideal for large projects.
- Power supply via 12 V DC: Provides 12 V/200 mA output power to supply small devices - compatible with optional 12 V/1 A power supply unit.

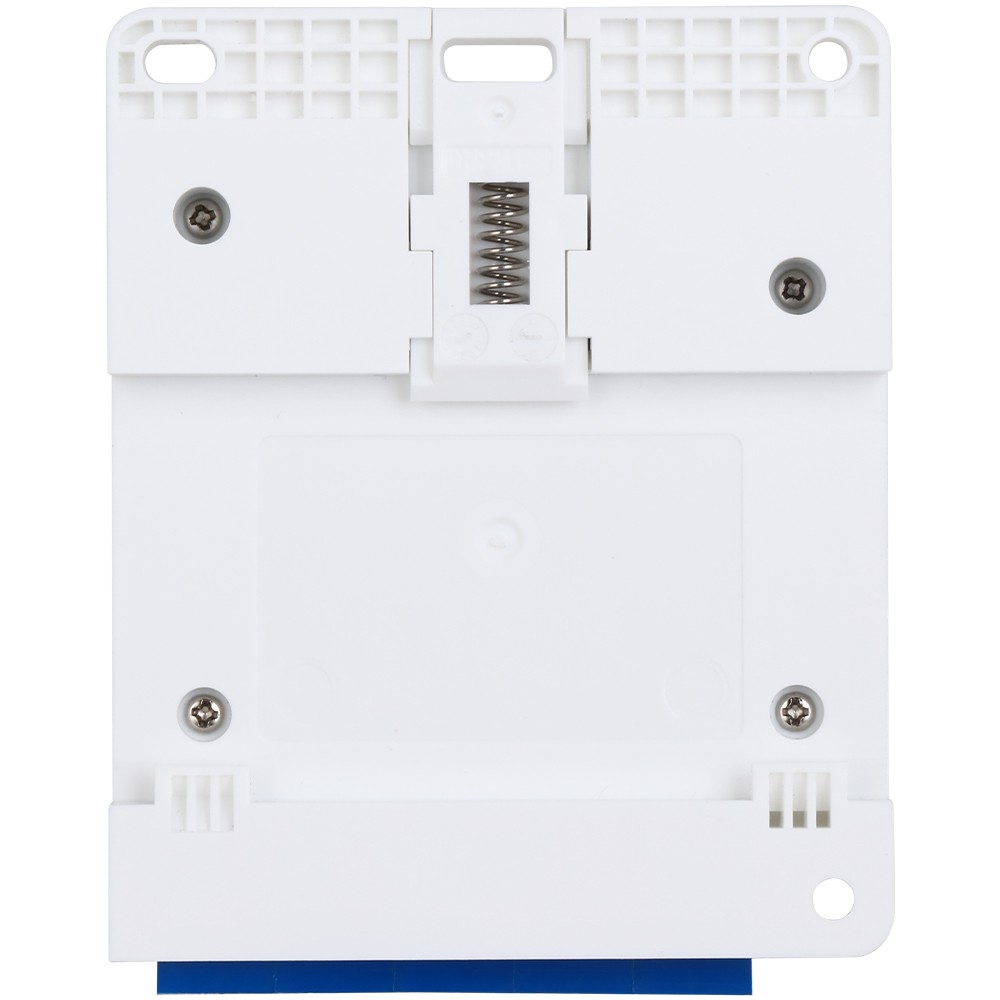

- Easy mounting & integration: Supports DIN rail or wall mounting, equipped with RS-485 input and output as well as LED status indicators.
- Resistant for outdoor use: Operating temperature from -30 °C to +60 °C, housing made of robust PC+ABS - reliable in a wide range of environments.
Details about RS485 extension module
| GERÄTETYP | Erweiterung Erweiterungsmodul |
|---|
Manufacurer:
SDA-DHI-DEE118A
Weight:
0.000000
Storage:
Zentrallager
