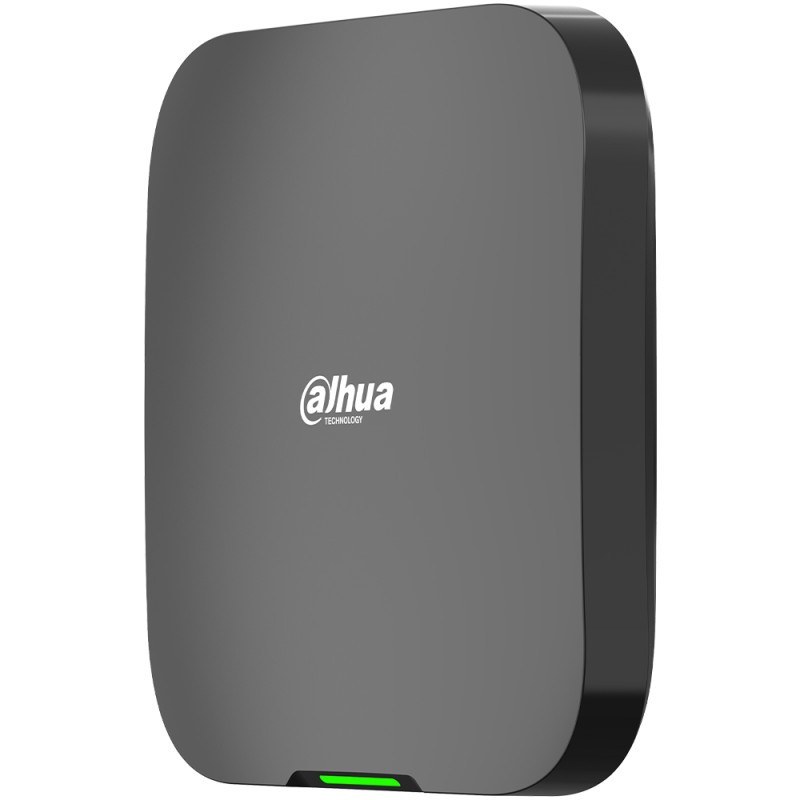

Wireless alarm control panel, hub 2, 150 ML, grade 2, WLAN, 4G, black

Next generation wireless alarm hub

With support for up to 150 peripheral devices, integrated video verification, versatile network connectivity and fail-safe operation via Wi-Fi, LTE or Ethernet, this hub offers maximum flexibility and reliability.

Product features:

• High-capacity system management: manage up to 150 wired and wireless devices in up to 32 areas - including cameras, sirens, keypads and sensors.
• Stable wireless connection with long range: Two-way communication with AES128 encryption, frequency hopping and a range of up to 2,000 metres in free field.
• Multi-network capability for maximum reliability: Redundant connection options via WLAN, LTE (dual SIM), Ethernet and AP mode.
• Smart alarm verification: Integration of up to 8 IP cameras and 64 PIR cameras for image transmission in the event of an alarm - ideal for real-time monitoring via app.
• Integrated battery and reliable operation: 4,750 mAh lithium battery for up to 12 h standby in the event of a power failure - with cloud update function and automatic recovery.

Technical features:

Radio frequency range: 868.0-868.6 MHz
Radio range: Up to 2,000 m (free field)
Connectivity: WLAN, Ethernet, 4G LTE (dual SIM, 2G/3G/4G)
Power supply: 100-240 V AC, integrated 4,750 mAh battery
Consumption: Max. 21.6 W (mains operation), max. 6.2 W (battery operation)
Peripheral devices: Up to 150, incl. 64 keyfobs, 64 PIR cams, 8 keypads, 6 sirens
Memory: Up to 5,000 events, 50 offline alarms
Video inputs: Up to 8 IP cameras
Dimensions: 174.8 × 174.8 × 38.3 mm
Operating temperature: -10 °C to +55 °C
Certifications: CE, EN 50131 (Grade 2, Environmental Class II), SIA, SoftGuard

A powerful, networked alarm hub with professional functions - ideal for modern, hybrid security solutions with video connection and smart control.
