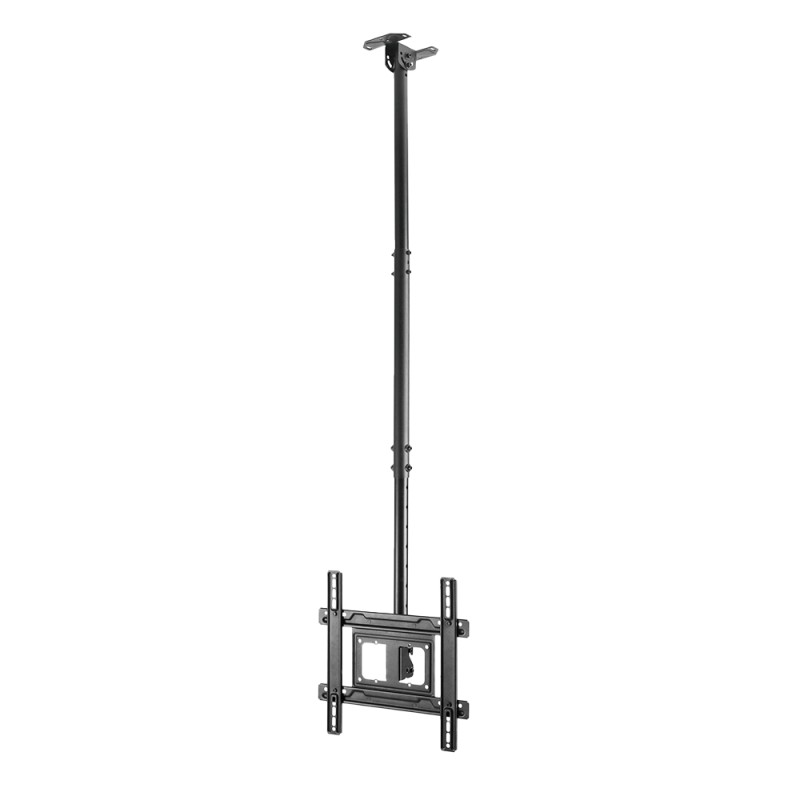

Ceiling mount - Supported weight 50kg - VESA 400x400mm - Distance to ceiling 707-1577mm

A ceiling mount is a construction that allows a monitor to be suspended from the ceiling at different heights (depending on the length of the tube it is made of) to allow a suspended installation and save space on the floor or wall. It is ideal for environments such as conference rooms, auditoriums or exhibitions.

To ensure that a mount is compatible with a monitor, two important points must be checked:

- VESA compatibility: VESA is the standard that defines the distance (in millimetres) between the mounting holes on the back of the monitor and the mount. With this type of mount (metal parts attached to the monitor and resting on another part of the mount), the VESA value of the mount can be higher, but never lower than the VESA value of the monitor, as the nails allow the distance to be adjusted both horizontally and vertically.

Example: If the VESA value of the monitor is 500x300 mm and the VESA value of the stand is 600x400 mm, they are compatible as the nails can be adjusted horizontally to the correct distance and the multiple holes in the nails can be used for vertical adjustment.

- Weight compatibility: The stand must be able to support the weight of the monitor without exceeding its maximum load capacity.

Example: If the monitor weighs 14kg and the stand supports up to 12kg, they are not compatible. On the other hand, if the support supports up to 18kg, they are.

• Tilt between +5º / -25º
• Rotation angle +30º / -30º
• Distance between ceiling and screen, adjustable between 707-1577mm
• Maximum load 50kg
