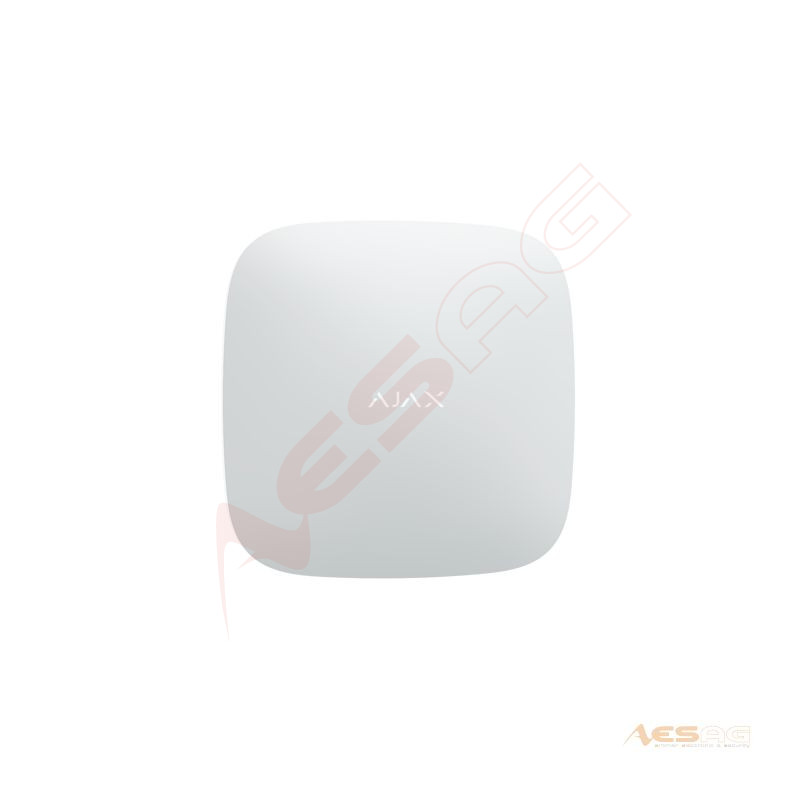

AJAX HUB Starter Pack (White)
The intelligent hub central unit is the heart of the Ajax security system.
AJAX HUB Starter Pack (White)
This AJAX starter set consists of:
- 1x AJAX | HUB 2 PLUS - wireless alarm control panel, white - (
- 1x AJAX | Wireless opening detector "DoorProtect", white - (
- 1x AJAX | Wireless remote control "SpaceControl", white - ( )
- 1x AJAX | Wireless motion detector "MotionProtect", white - ( )
The intelligent AJAX Hub central unit is a key element of the Ajax security system. The device monitors the operation of all Ajax detectors and immediately sends an alarm signal to the owner and the monitoring center.
- Authentication to prevent counterfeiting
- Signal interference detection and encryption of communication channels
- Tamper alarm
|
It uses GSM or Ethernet to send alarms to the monitoring center and the owner |
The device sends a notification in case of power failure and works up to 15 hours on the battery reserve |
It checks the functionality of the detectors at least every 12 seconds |
Functional principle
The device records information about the detector operation in an encrypted format, analyzes the data, and in the event of an alarm, notifies the system owner and the monitoring center in just a few milliseconds.
Characteristics
The device uses Jeweller's wireless technology to monitor the detectors and ensure a quick response to threats. It switches the entire system to cancel frequencies in the event of signal interference. The device is protected against viruses at the software level.
Installation and setup
Ready to use straight away. Setup is done via the mobile application and the detectors are connected with a single click. With the SmartBracket mount it can be installed in just a few minutes.
The AJAX HUBs - A brief overview:
| HUB | HUB2 | HUBPLUS | HUB 2 PLUS | |
|---|---|---|---|---|
| Devices | 100 | 100 | 150 | 200 |
| Cameras and DVRs | 10 | 25 | 50 | 100 |
| ReX | 1 | 5 | 5 | 5 |
| user | 50 | 50 | 99 | 200 |
| Security areas | 9 | 9 | 25 | 25 |
| Scenarios 1 | 5 | 32 | 64 | 64 |
| Support photo confirmation of alarms | No | Yes | No | YES (MotionCAM) |
| Communication channels | 2G 1xSIM Ethernet |
2G 2хSIM Ethernet |
2G&3G ( 2xSIM) |
2G, 3G & 4G LTE (2хSIM) Ethernet Wi-Fi |
Product features:
- The hub is certified according to EN 50131 Grade 2.
- Maximum number of sensors: 100
- Number of possible users per hub: 50
- Number of scenarios: 5
- Group mode: 9 areas (groups) can be created which can be switched independently of each other.
- Easily add detectors via app by scanning the respective QR code of the sensor.
- An internet connection is required for setup and configuration.
Technical data of the hub:
| Maximum number of connected devices | 100 |
| Maximum number of groups | 9 |
| Maximum number of hub users | 50 |
| Number of connectable ReX | 1 |
| Number of scenarios | 5 |
| Power supply | 110 to 240V |
| battery pack | Li-Ion 2 Ah (up to 15 hours) |
| Protection by tamper contact | Yes |
| Frequency range | 868.0–868.6 MHz or 868.7–869.2 MHz depending on sales area |
| Peak power of the radio signal | 8.20 dBm / 6.60 mW (up to 25 mW) |
| modulation | GFSK |
| Radio signal | Up to 2000 m (without obstacles) |
| Communication channels | GSM 850/900/1800/1900 MHzGPRS, Ethernet |
| Working temperature range | +5°C to +40°C |
| External dimensions | 163x163x36mm |
| Weight | 350g |
| Certification | Security level 2, environmental class I SP2 (GSM-SMS), SP5 (LAN) DP3 in accordance with the requirements of DIN EN 50131-1, EN 50131-3, EN 50136-2, EN 50131-10, EN 50136-1, EN 50131-6, EN 50131-5-3 |
Scope of delivery:
- 1x AJAX | HUB 2 PLUS - wireless alarm control panel, white - (
- 1x AJAX | Wireless opening detector "DoorProtect", white - (
- 1x AJAX | Wireless remote control "SpaceControl", white - ( )
- 1x AJAX | Wireless motion detector "MotionProtect", white - ( )
