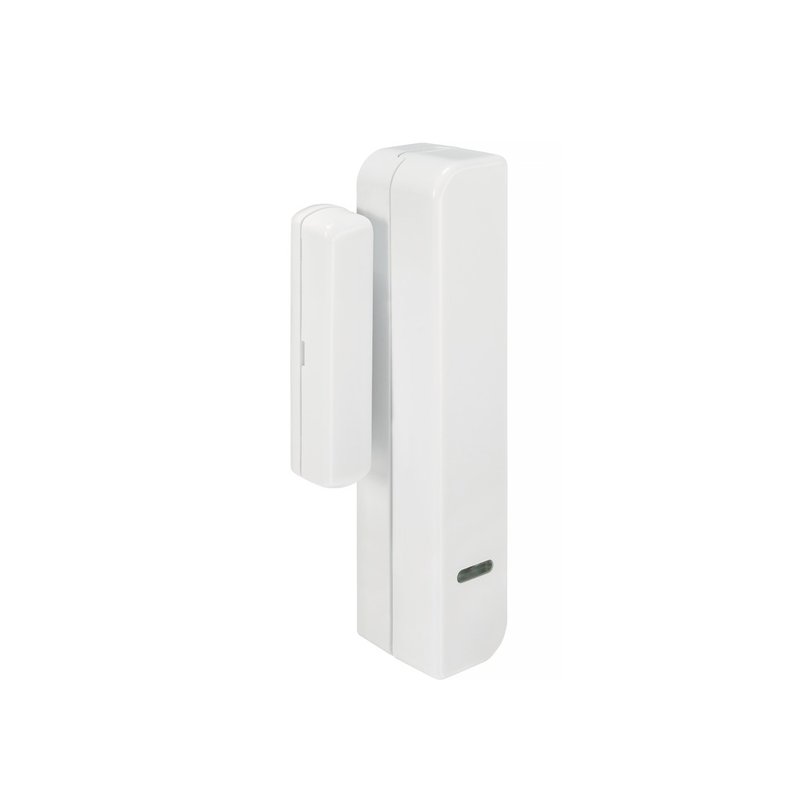

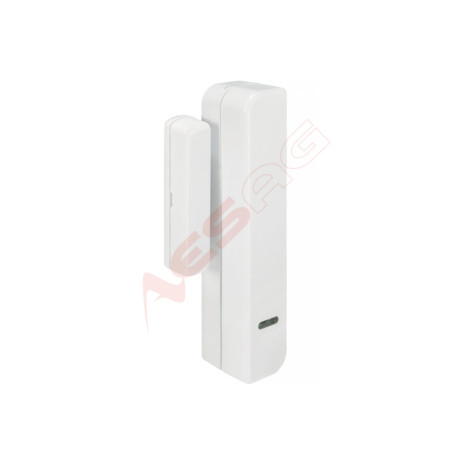

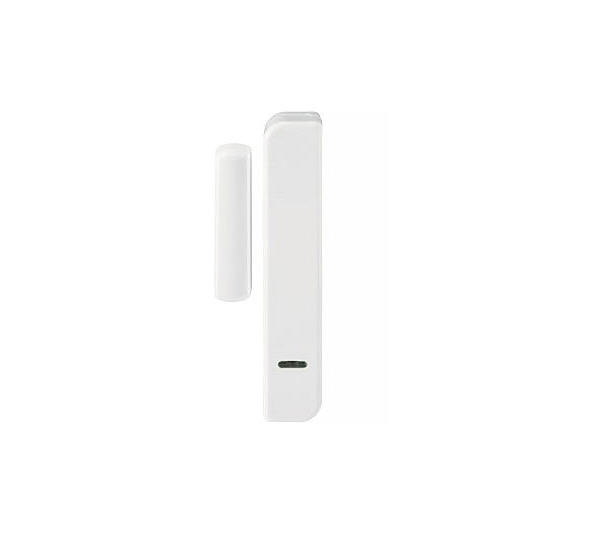

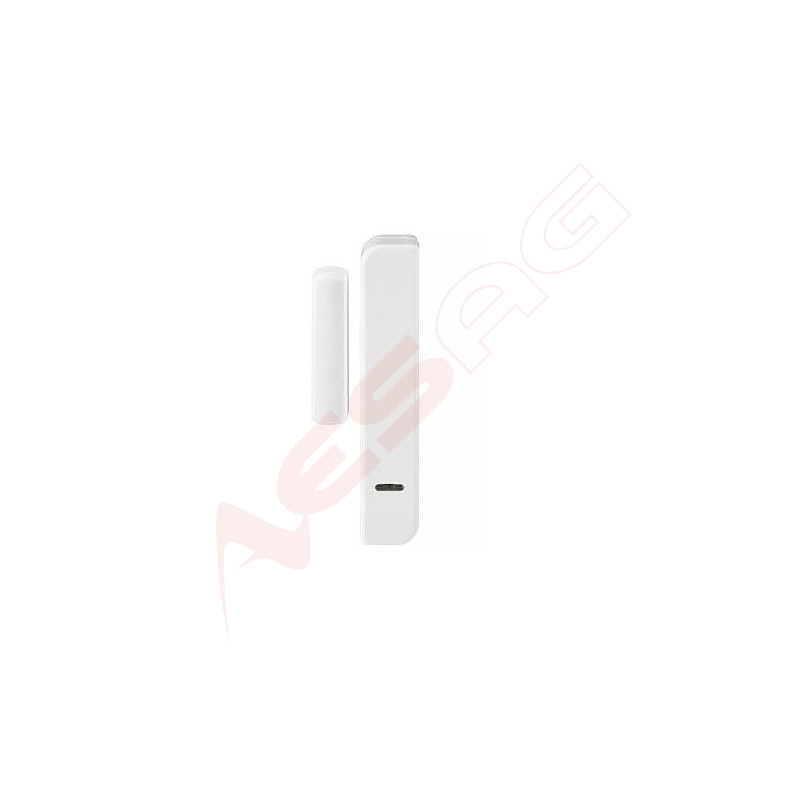

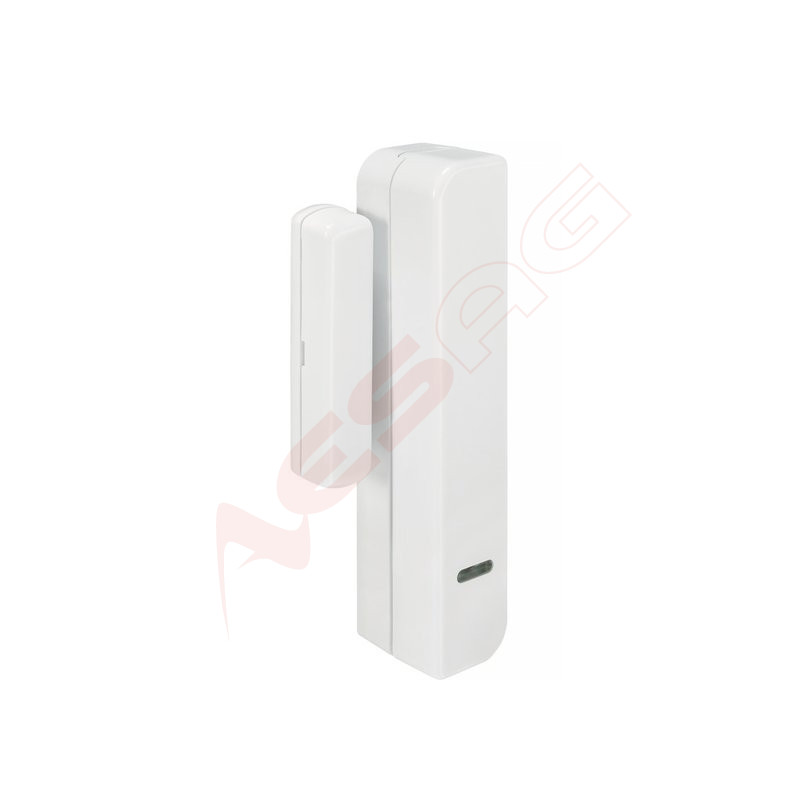

ABUS Secvest - wireless opening detector - narrow - white

The wireless opening detector (FUMK50031W) is a component of the Secvest (or the Terxon with a wireless extension module). It is a magnetic contact that secures doors and windows. Unauthorized opening is detected and reported to the wireless alarm center.

The optimal installation location for the wireless opening detector is the middle of your door or window frame. It can also be installed on the lower window frame if a specific window is to be tilted when the magnetic contact is secured.

The wireless opening detector consists of a detector and a magnet. These are installed parallel to each other at a distance of between 3 and 10 mm. The detector is triggered as soon as this distance increases.

The wireless opening detector for the ABUS Secvest is available in elegant white (FUMK50031W) and brown (FUMK50031B).

Product Highlights:

• No parallel import - original via CH distribution! Support and guarantee by ABUS Switzerland.
• Compatible with: new Secvest FUAA50000, FUAA50100, FUAA50500, FUAA50600, Secvest 2way FU8000, Secvest IP FUAA10011
• Slim design, particularly suitable for narrow installation spaces
• Reliably detects the opening of windows and doors
• Sabotage monitoring

Technical data:

• Article number: FUMK50031W
• EAN No.: 4043158141382
• Packaging dimensions LxWxH: 123x70x35 mm
• Battery - Quantity: 1
• Battery type: CR2 3V Li/MnO2
• Battery - max. battery life: 2 year(s)
• Width: 19mm
• Detection method: magnetic field measurement
• Color white
• Radio frequency: 868.6625 MHz
• Radio power: 10 mW
• Housing material: ABS
• Height: 103mm
• Length: 24mm
• Max. operating temperature: 55 °C
• Max. transmission range (open field): 100 m
• Max. transmission range (building): 30 m
• Min. operating temperature: -10 °C
• Modulation: FM
• Installation location: windows, doors
• Net weight: 0.052 kg
• Tamper monitoring: Yes
• Protection class IP: 34
• Sensor type: Reed contact
• Security level: 2
• Power supply DC: 3 V
• Voltage monitoring: Yes
• Language instructions: DE; EN, FR, NL, DK, IT
• Packaging language: DE; EN, FR, NL, DK, IT
• Status display: Yes
• Environmental class: II
• VdS Class: without

Scope of delivery:

• 1x ABUS FUMK50031W Secvest slim wireless opening detector white
• 1x mounting material
• 4x spacer plates
• 1x battery 3V CR2 Li (FU2990)
• 1x Quick Guide
