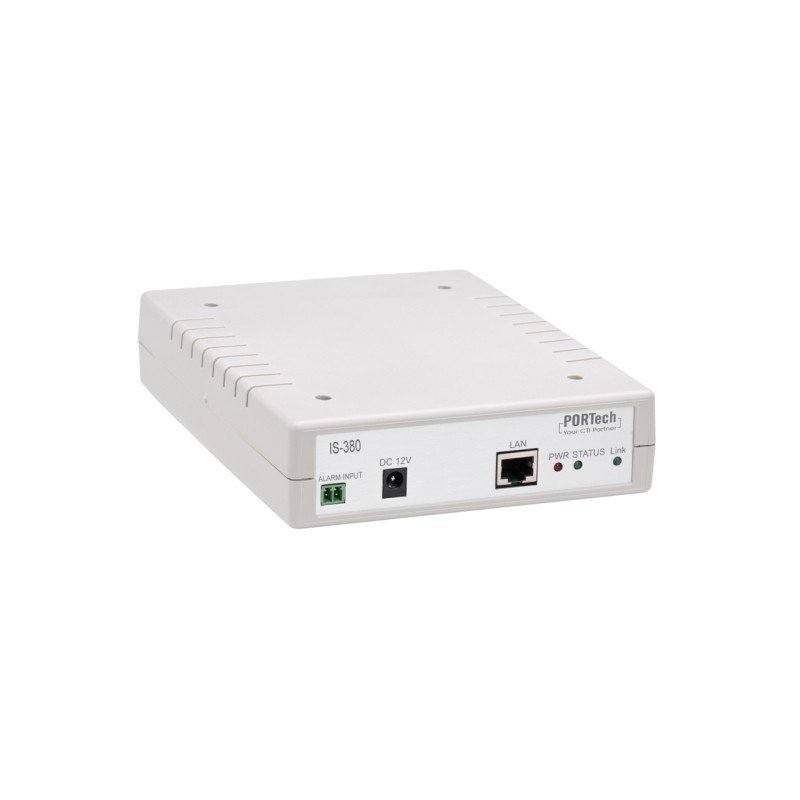

Portech VoIP IP Alarm trigger IS-380 1x Alarm INPUT

IS-380 is a IP Alarm trigger .
Using dry contact connect with sensor
when trigger NO-&gtNC or NC-&gtNO,IBS software will active schedule to play mp3/wav file to single speaker or group speaker to Alarm

Example:
Reservoir gate have a sensor and connect with our IS-380 via dry contact
The reservoir gate open, trigger NO-&gtNC. IBS System will play a mp3 preprogram file to specific speaker

Option: IP Broadcasting System

User can broadcast announcements to a group of office or branch or classes.
IBS-5: handle 5 pcs IS serial devices
IBS-10: handle 10 pcs IS serial devices
IBS-20: handle 20 pcs IS serial devices
IBS-40: handle 40 pcs IS serial devices
IBS-60: handle 60 pcs IS serial devices
IBS-80: handle 80 pcs IS serial devices
IBS-200: handle 200 pcs IS serial devices

Functions

•  DIM:17x14.5x4cm
•  Protocol :SIP(RFC2543, RFC3261)
•  Dry contact Input:1 port
•  power:110V-240V 12V/1A
•  network:RJ45 10/100Mbps
•  when dry contact from 0 to 1, IBS software will play pre-recorded voice message to signal or group speakers
•  Warranty:1 year
