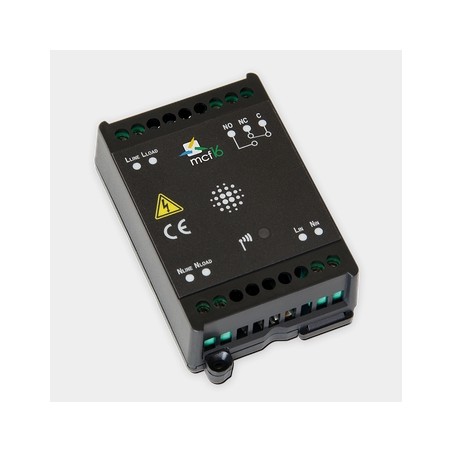

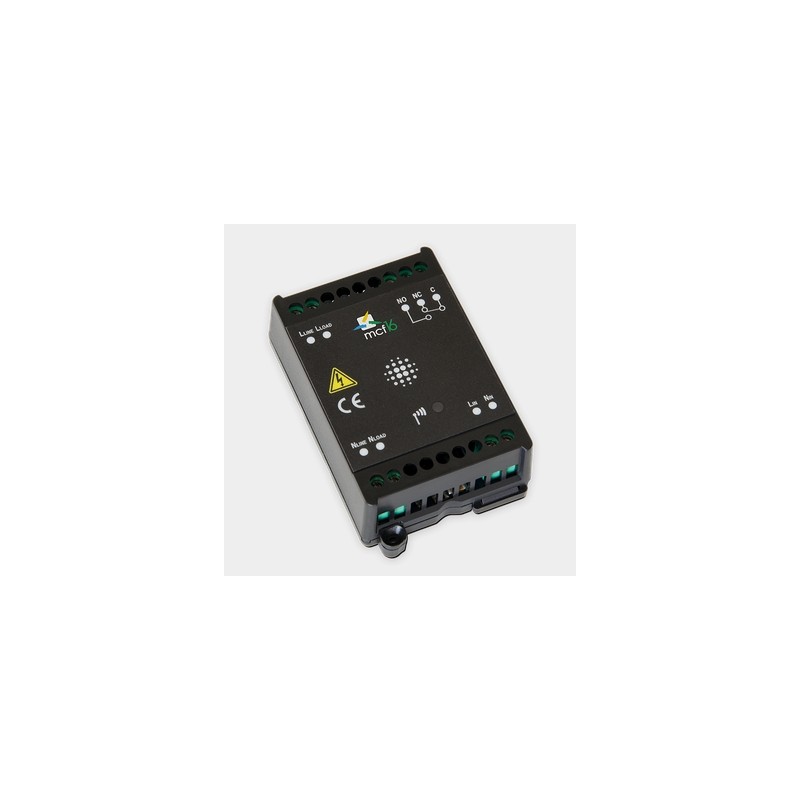

LoRa MCF88 LoRaWAN Mono-Phase Energy Metering with I/O 230VAC - 16Amp

LoRa MCF88 LoRaWAN Mono-Phase Energy Metering with I/O 230VAC - 16Amp

This compact metering can be used for monitoring and checking the power of electronic devices, and can remotely switch devices on/off and read the state of a digital input.

Applications:

Energy metering Powerline quality measure Monitoring of a remote input Managing of a remote actuator

Technical Data:

- CPU Cortex M0+ - RTC - EEProm 32KB - Flash 64KB -Encryption AES 128 bit - Class C LoRaWAN® stack EU868, AS923 - Metering of a 230Vac 16Amp Load (active, reactive and apparent energy, Class 0.2). - Data are sent through LoRaWAN® protocol for remote managing. - Instantaneous reading of active, reactive and apparent power, voltage and current - 1 opto-isolated input, capability 230Vac - 1 relay output with COM, NO, NC contacts carrying 8Amp@230Vac - NFC for IoT node setup, FW upgrade and data reading - Power supply from line - Storage temperature range -20 + 80C°, - Working temperature range -10 + 70C°
